Bera&Beren
Wall & Floor Tiles

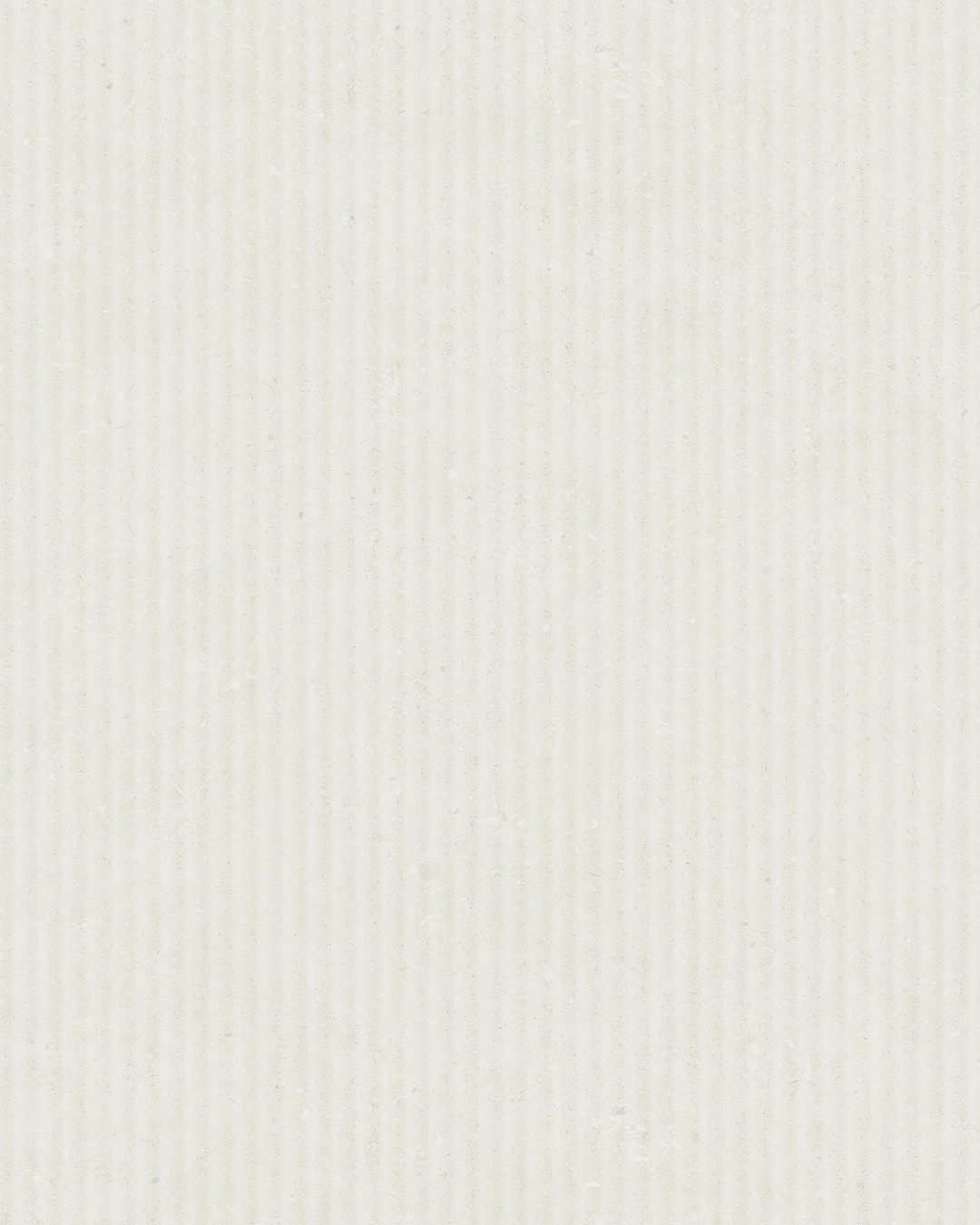

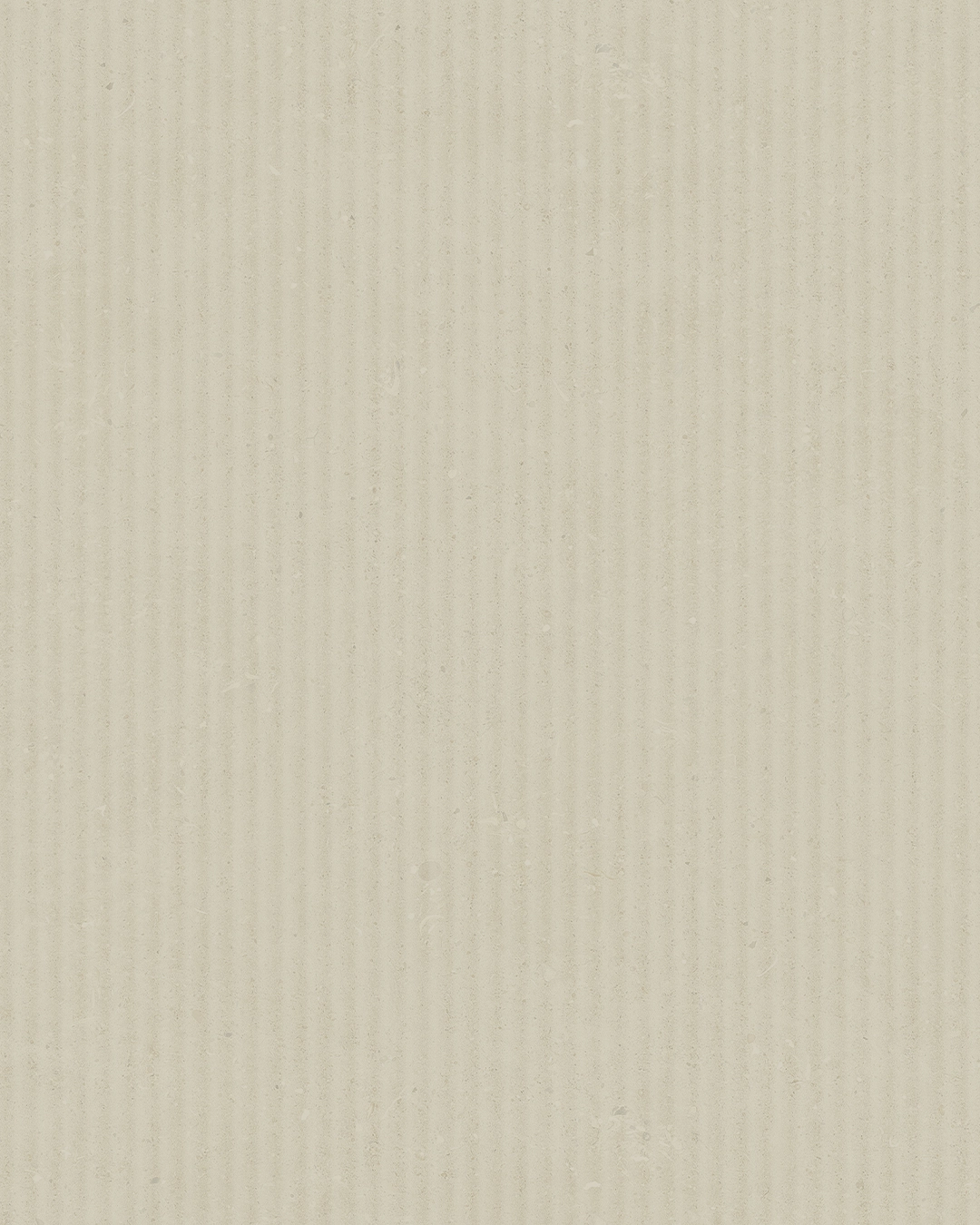

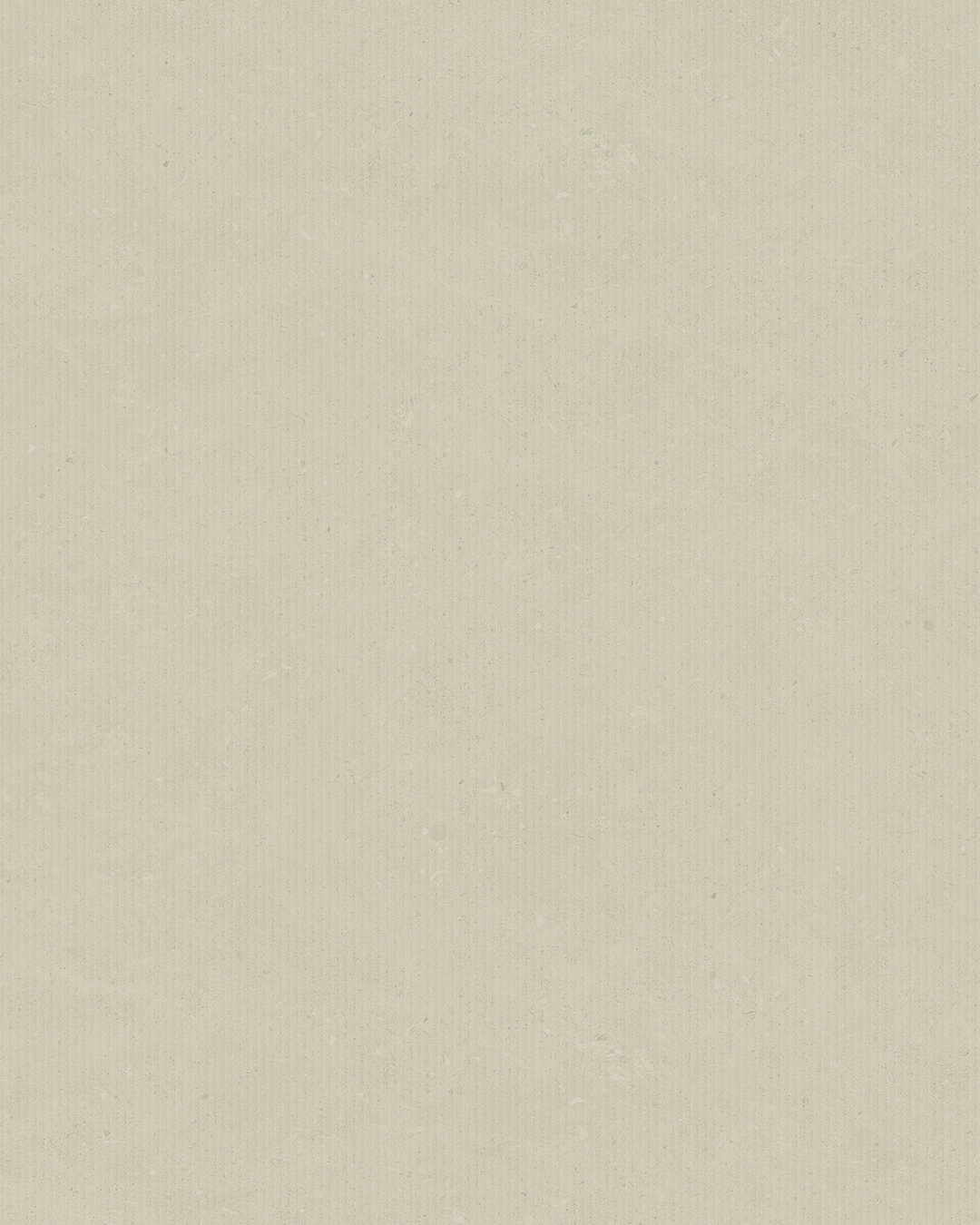

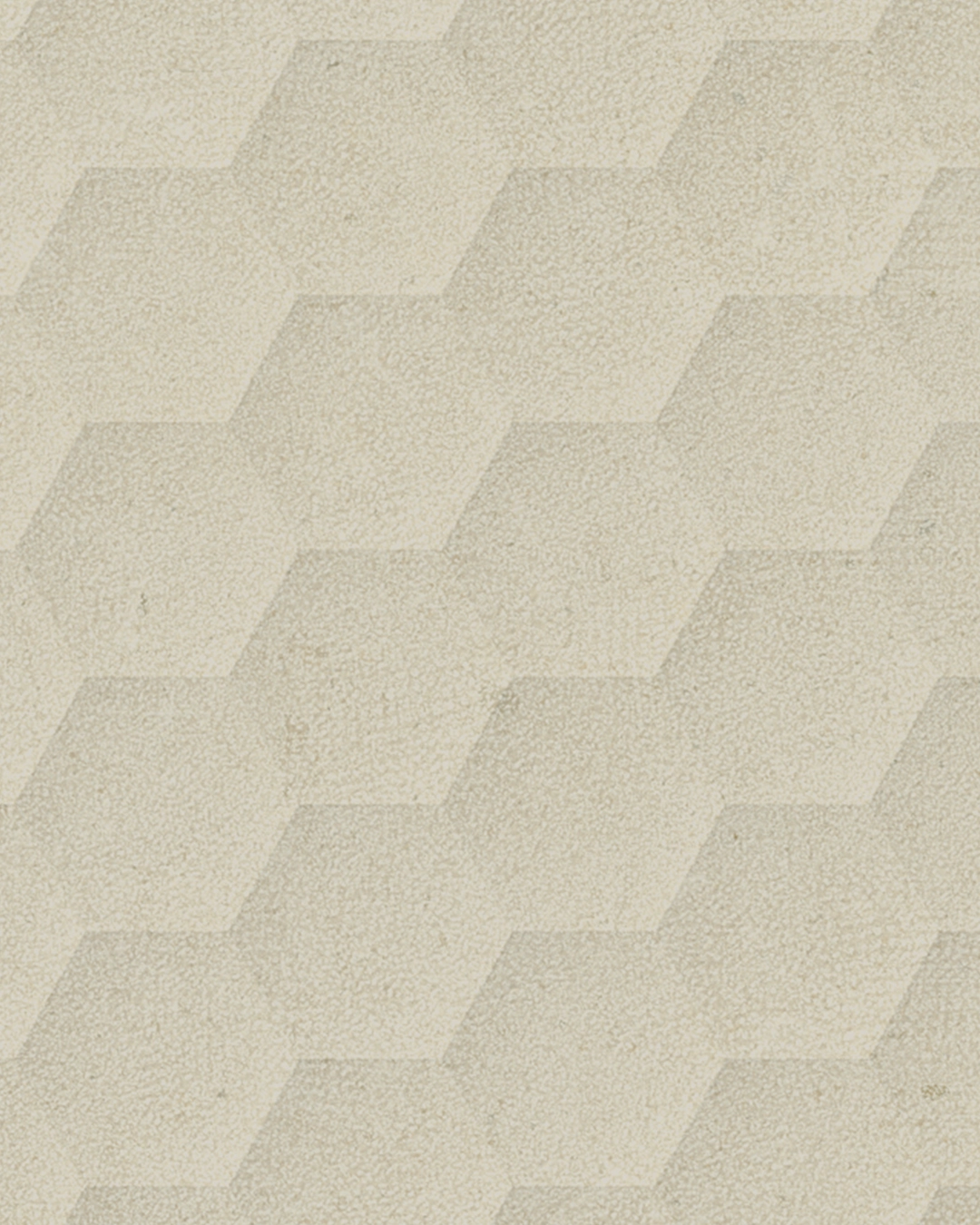

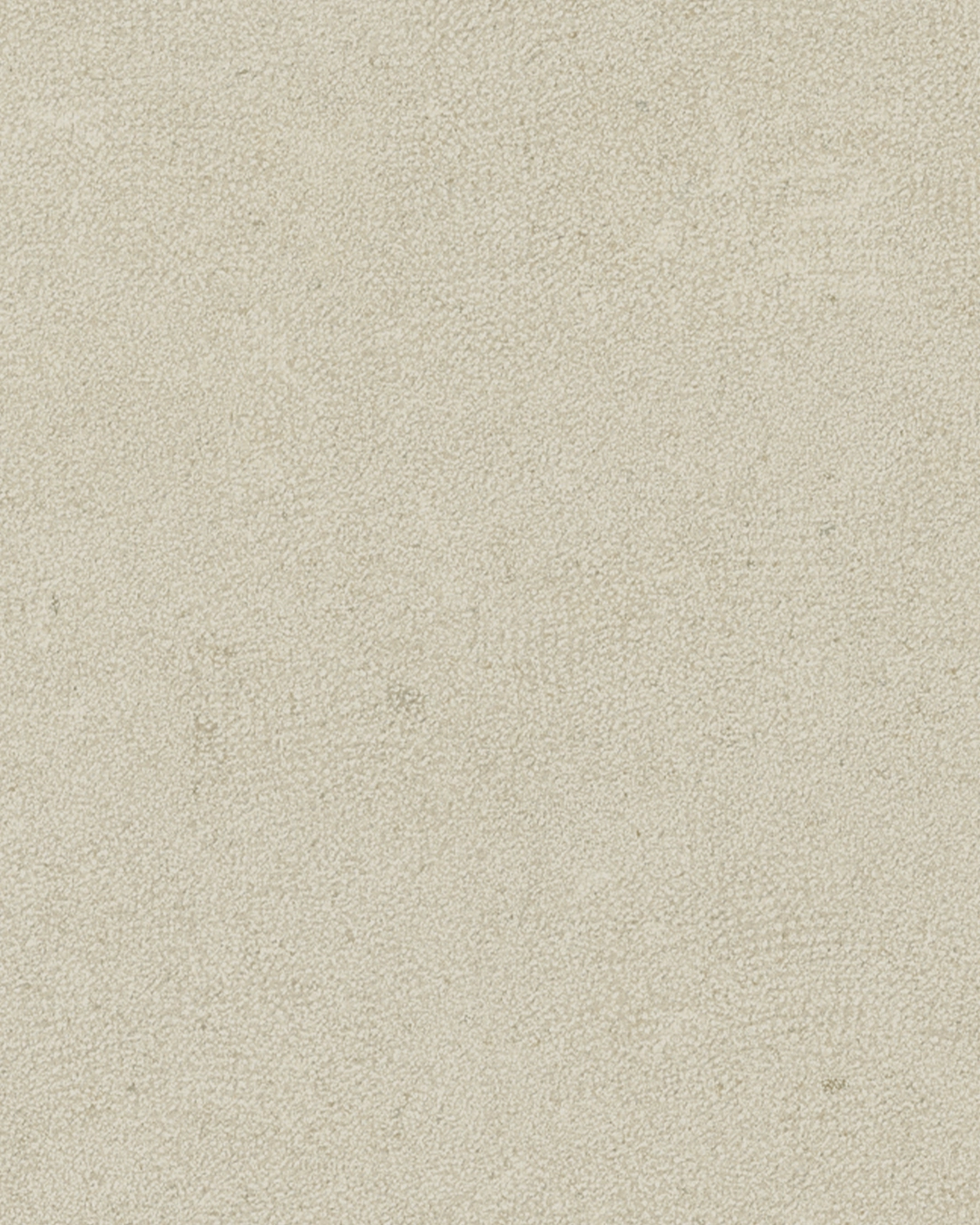

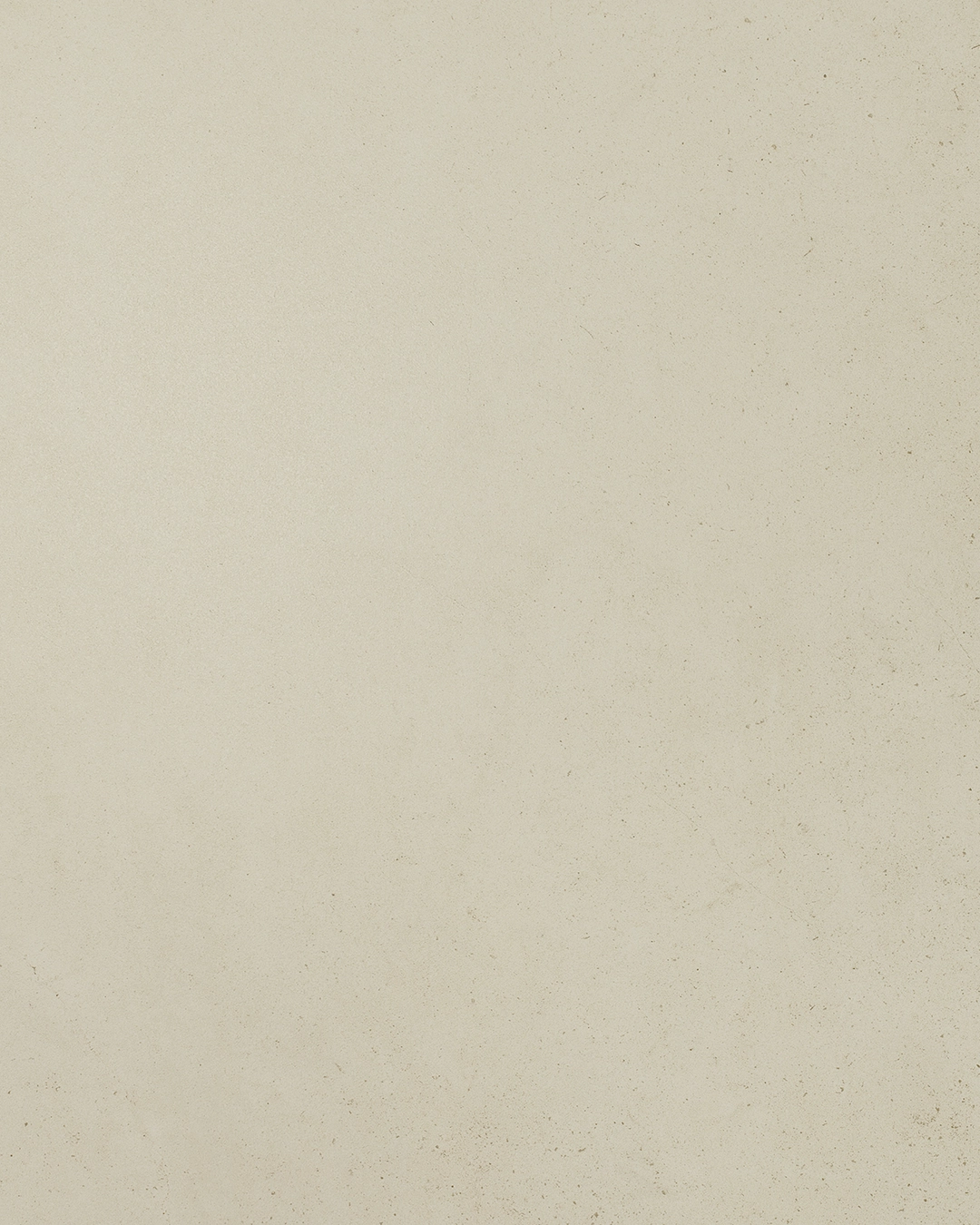

white

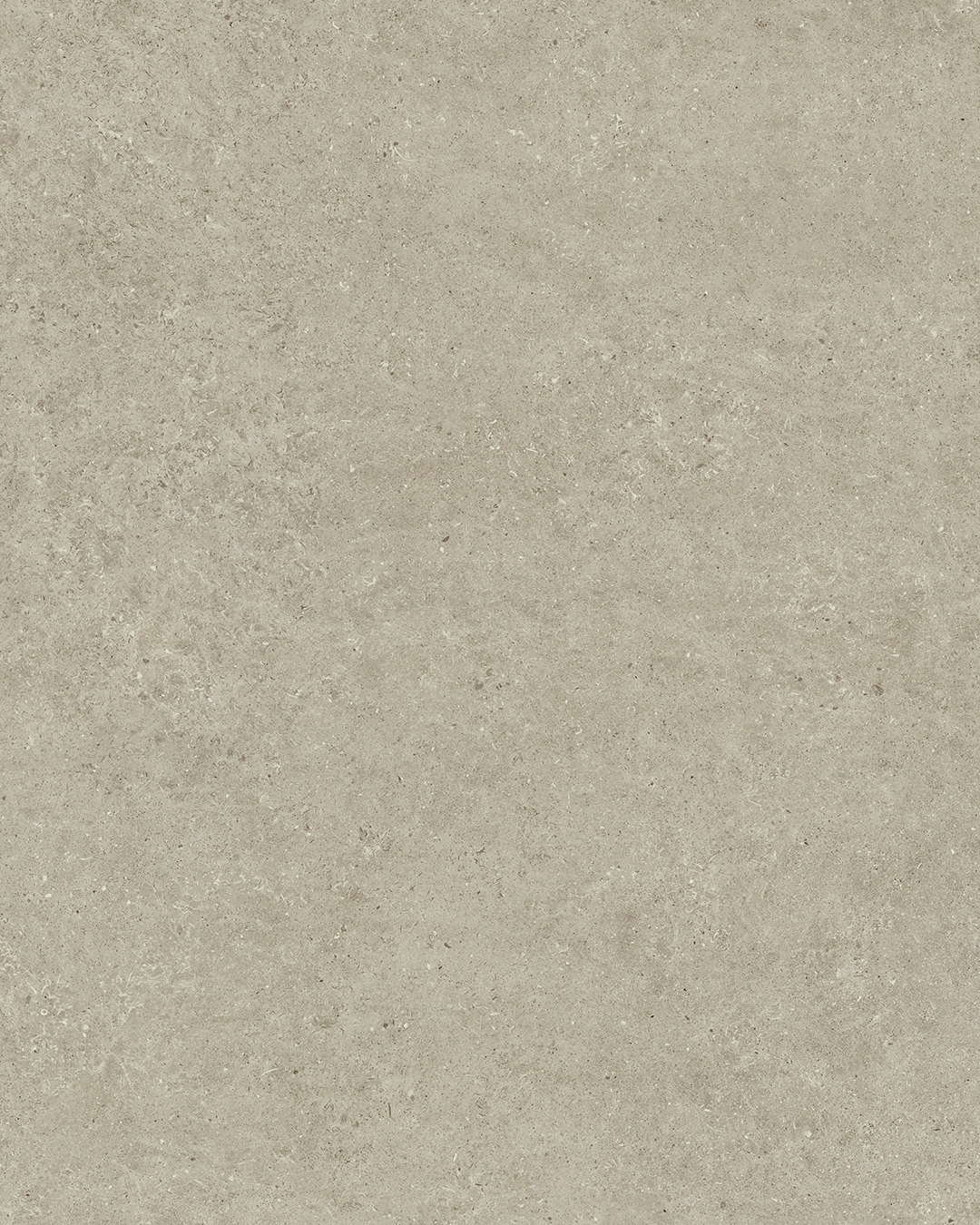

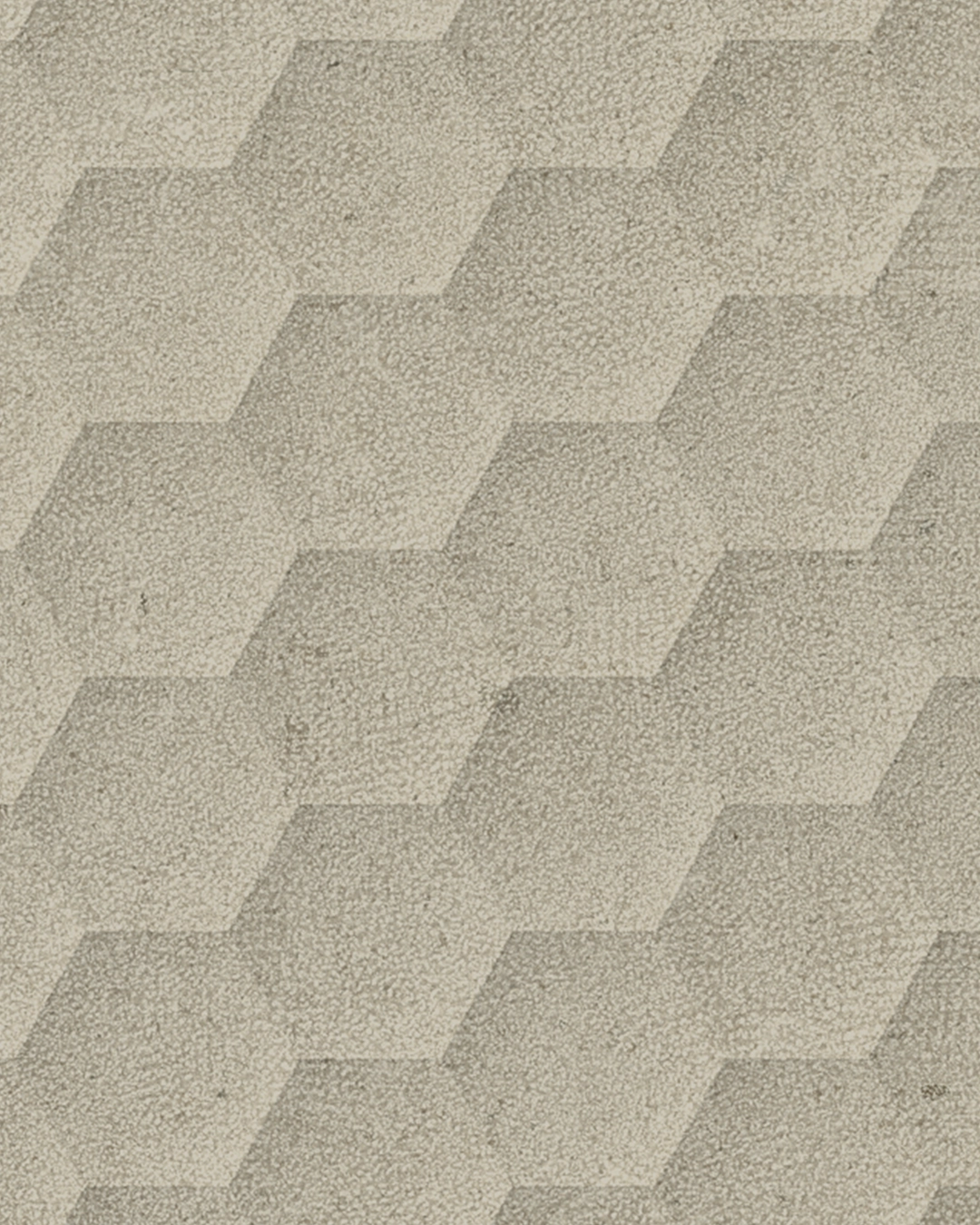

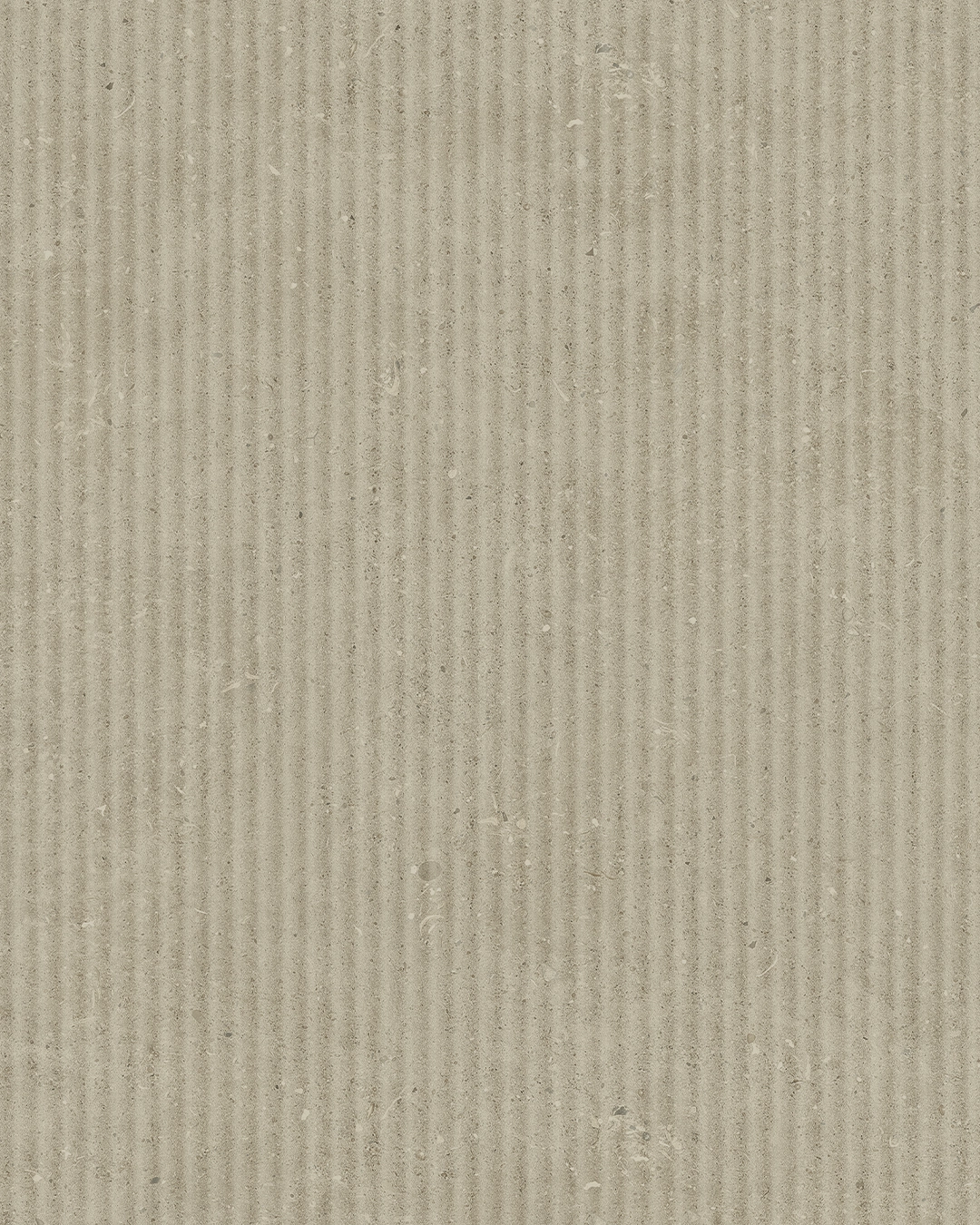

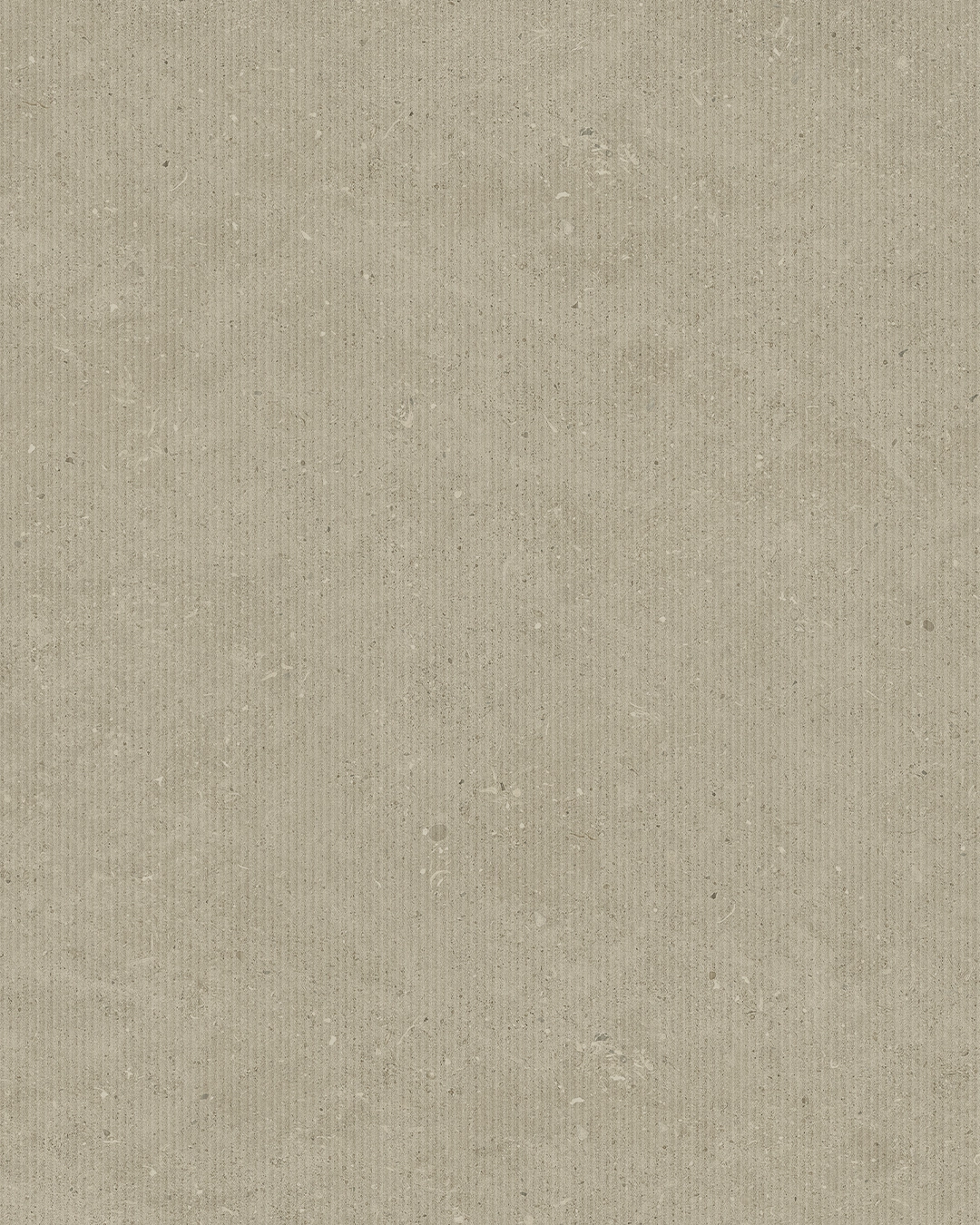

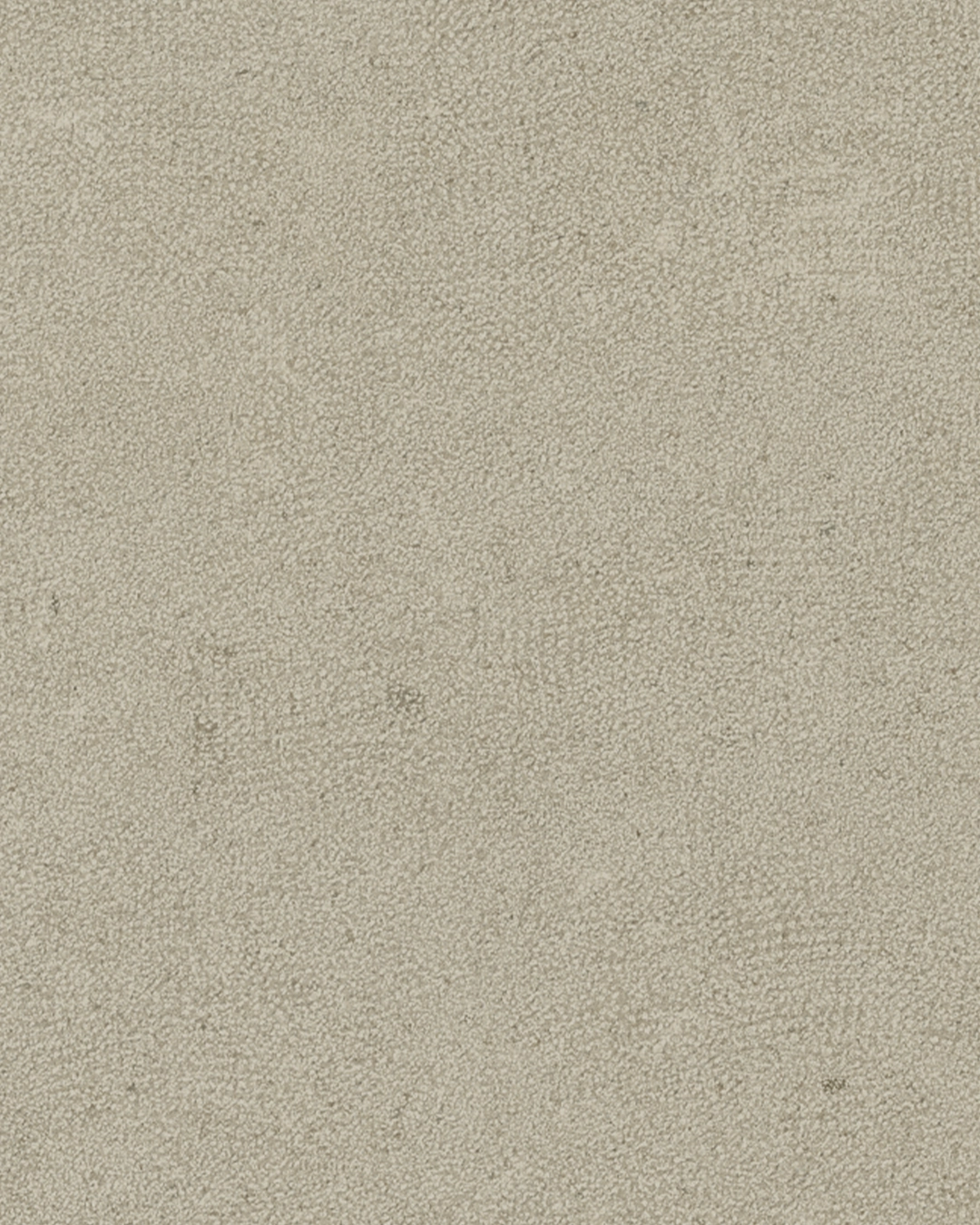

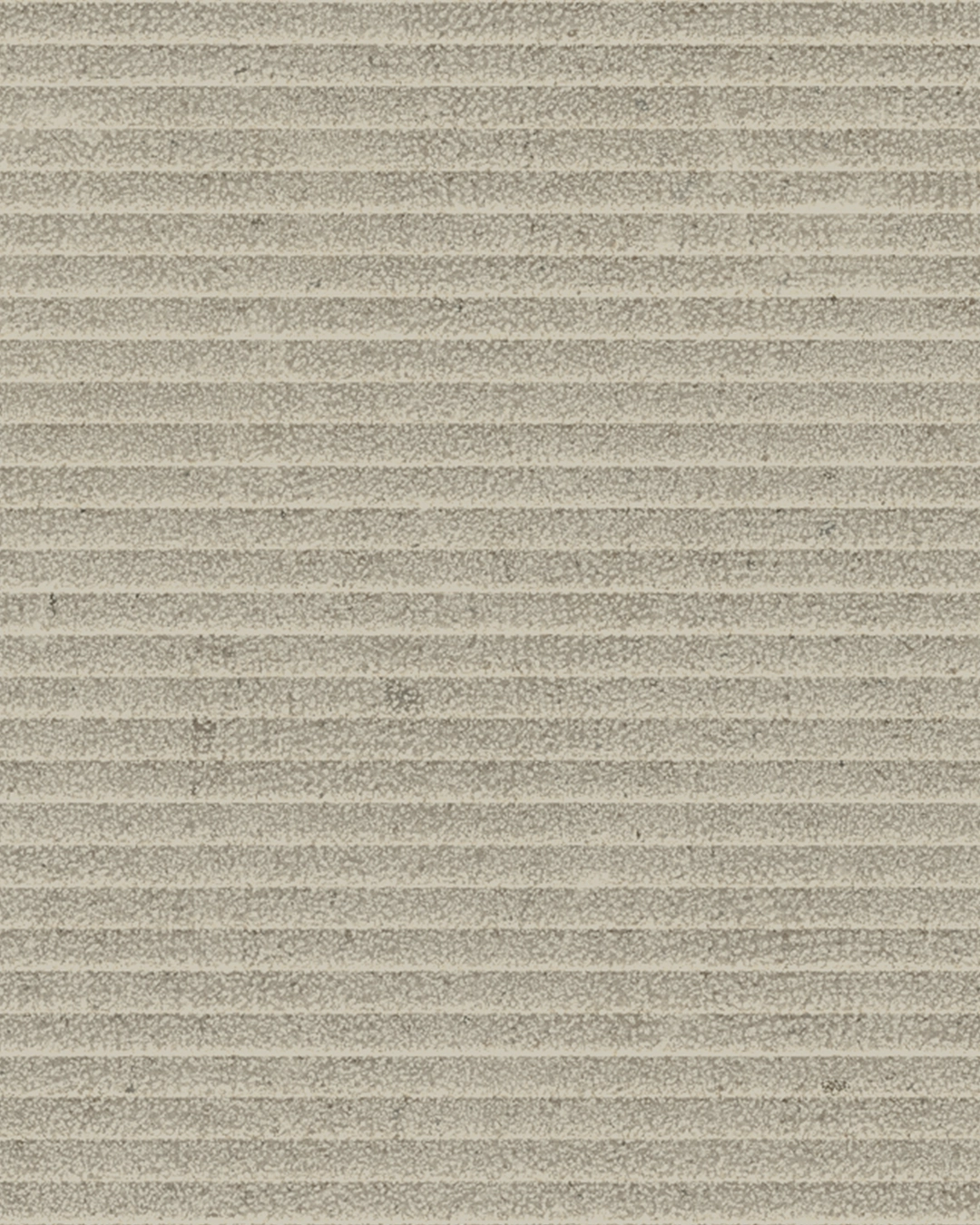

light grey

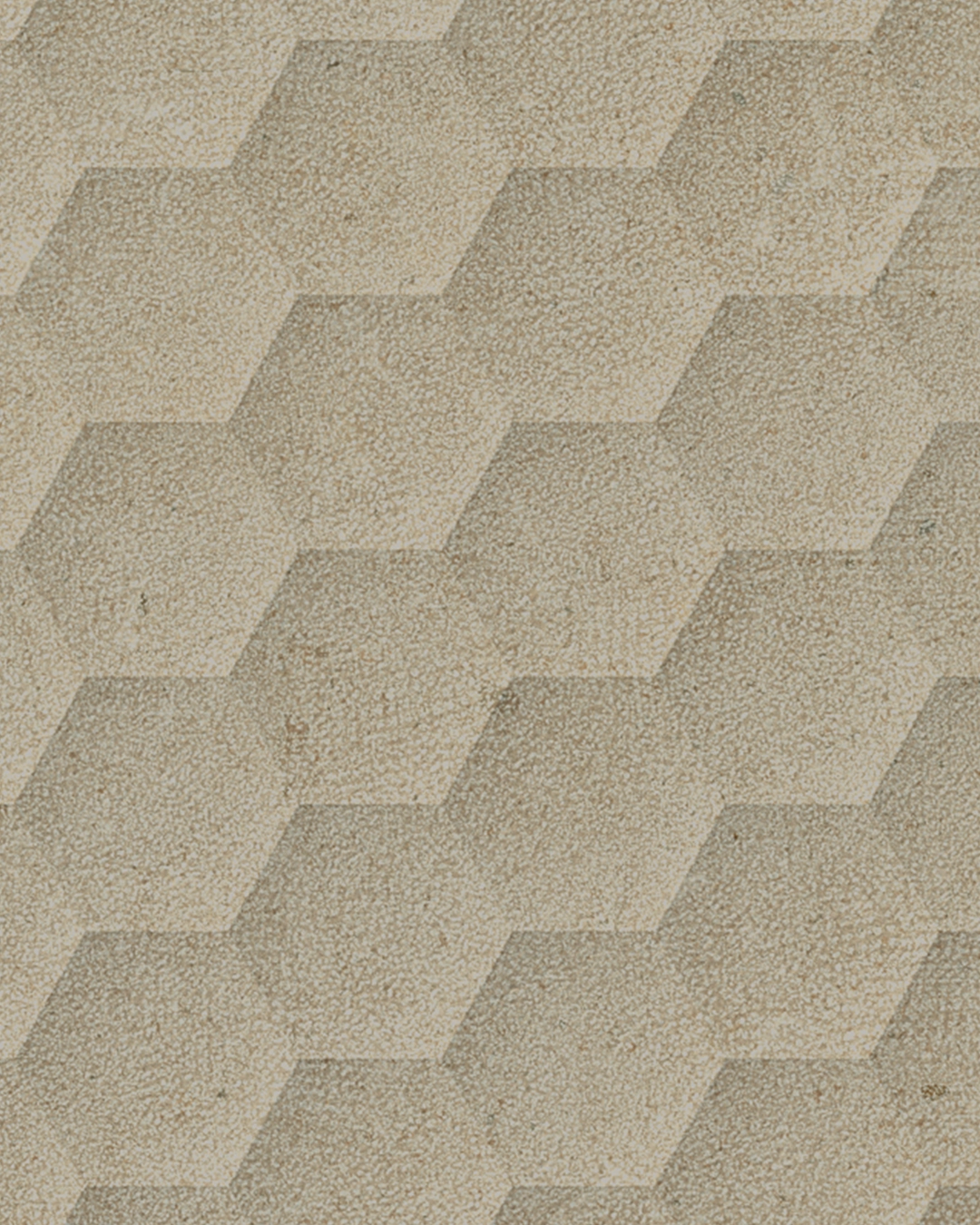

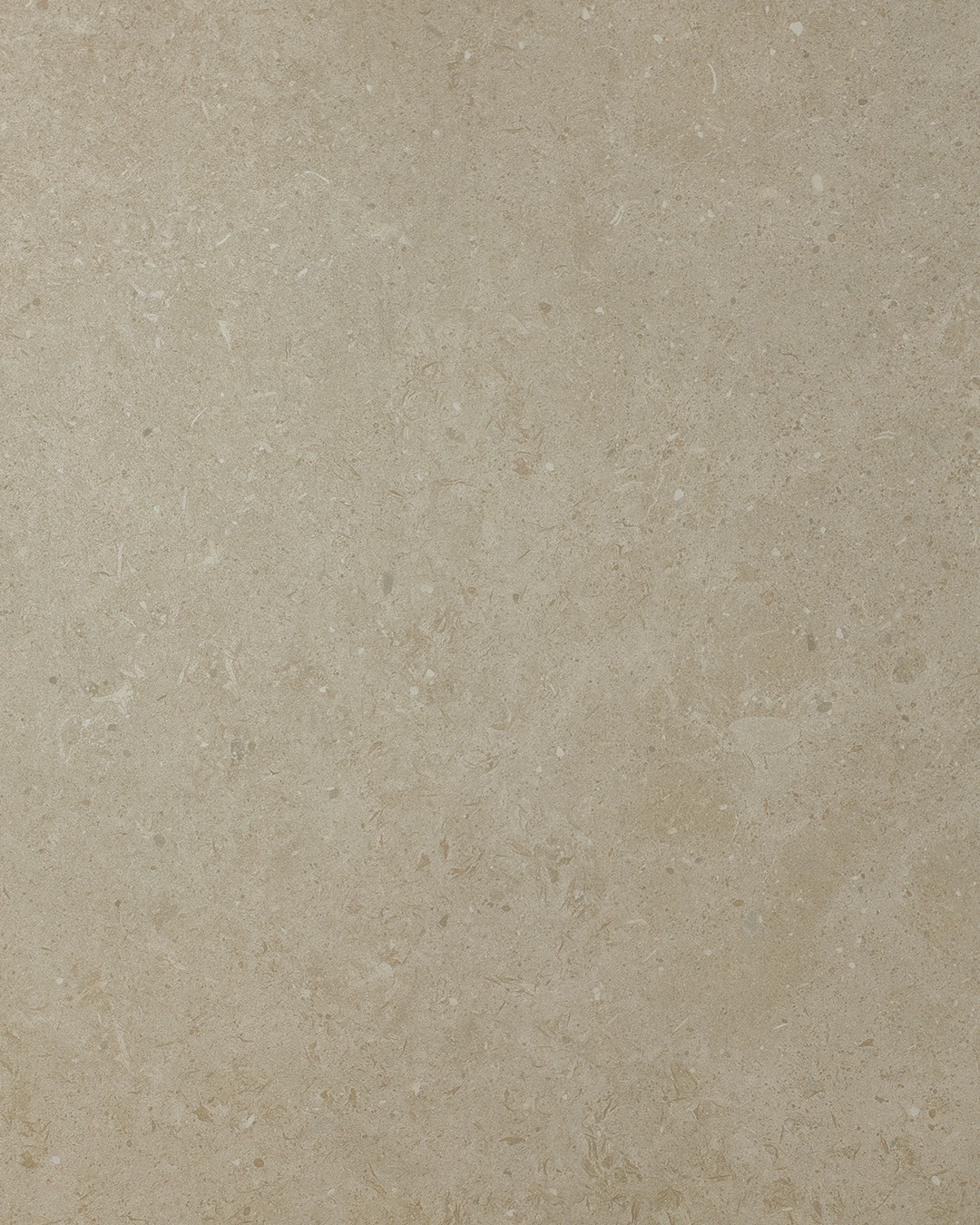

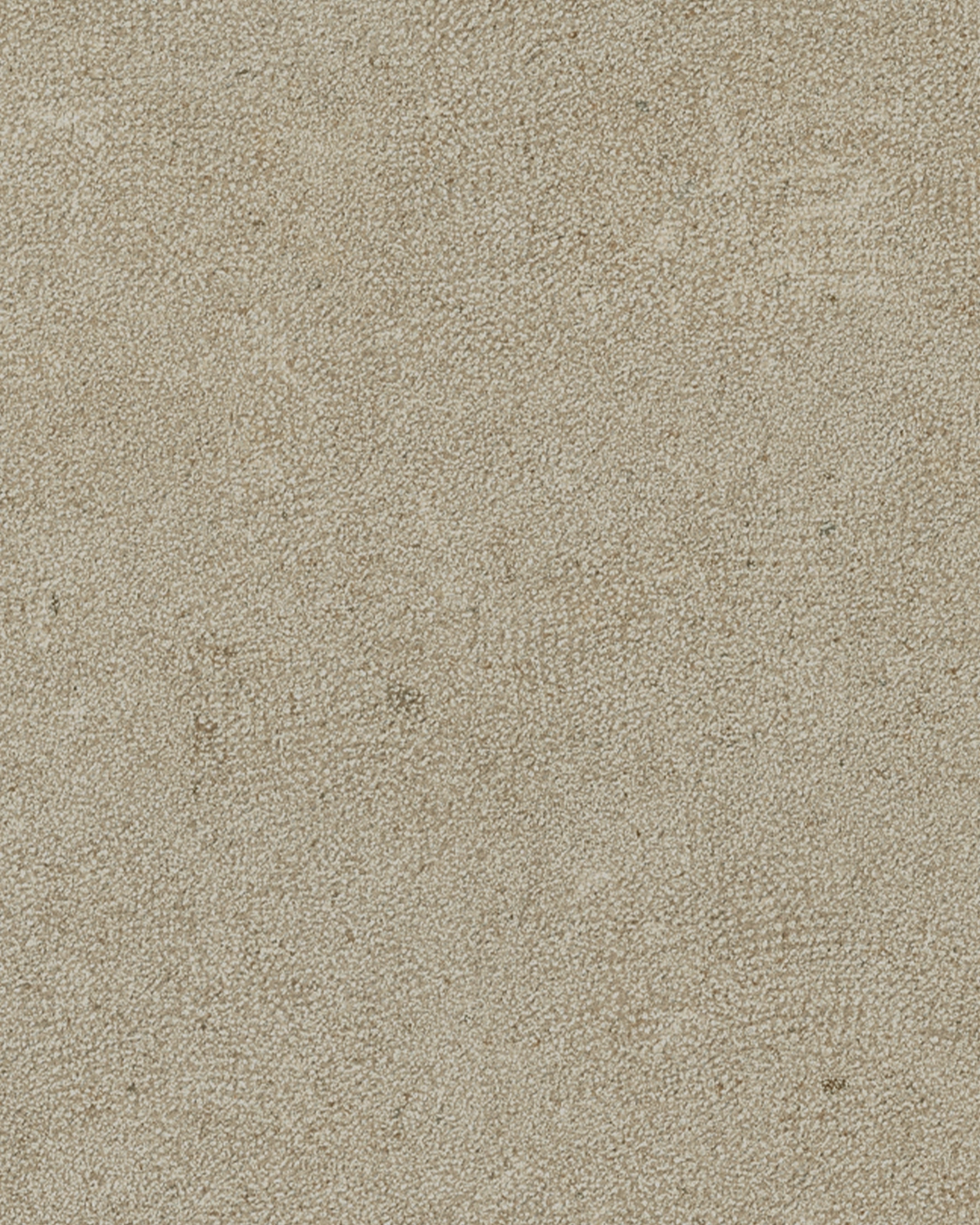

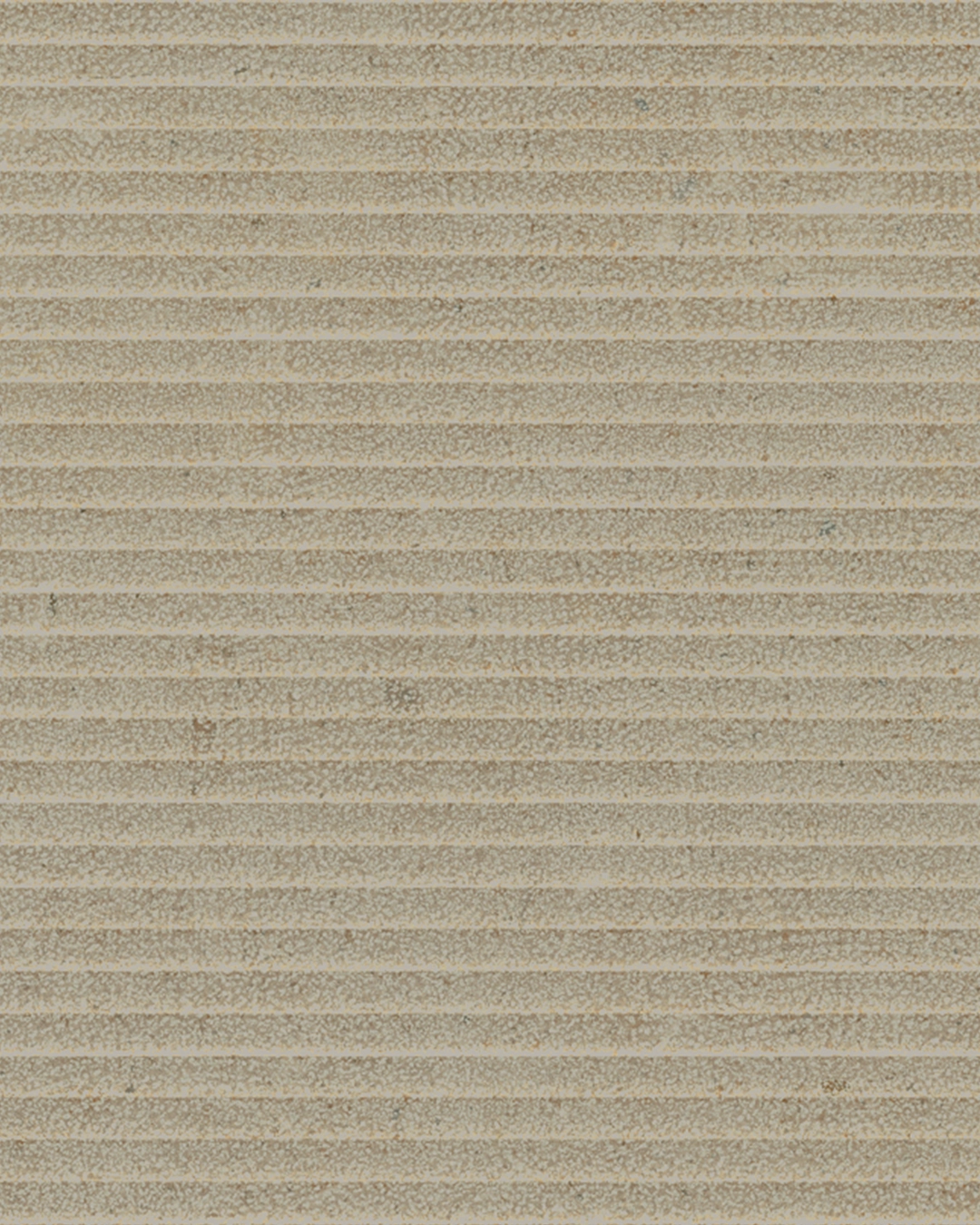

biscuit

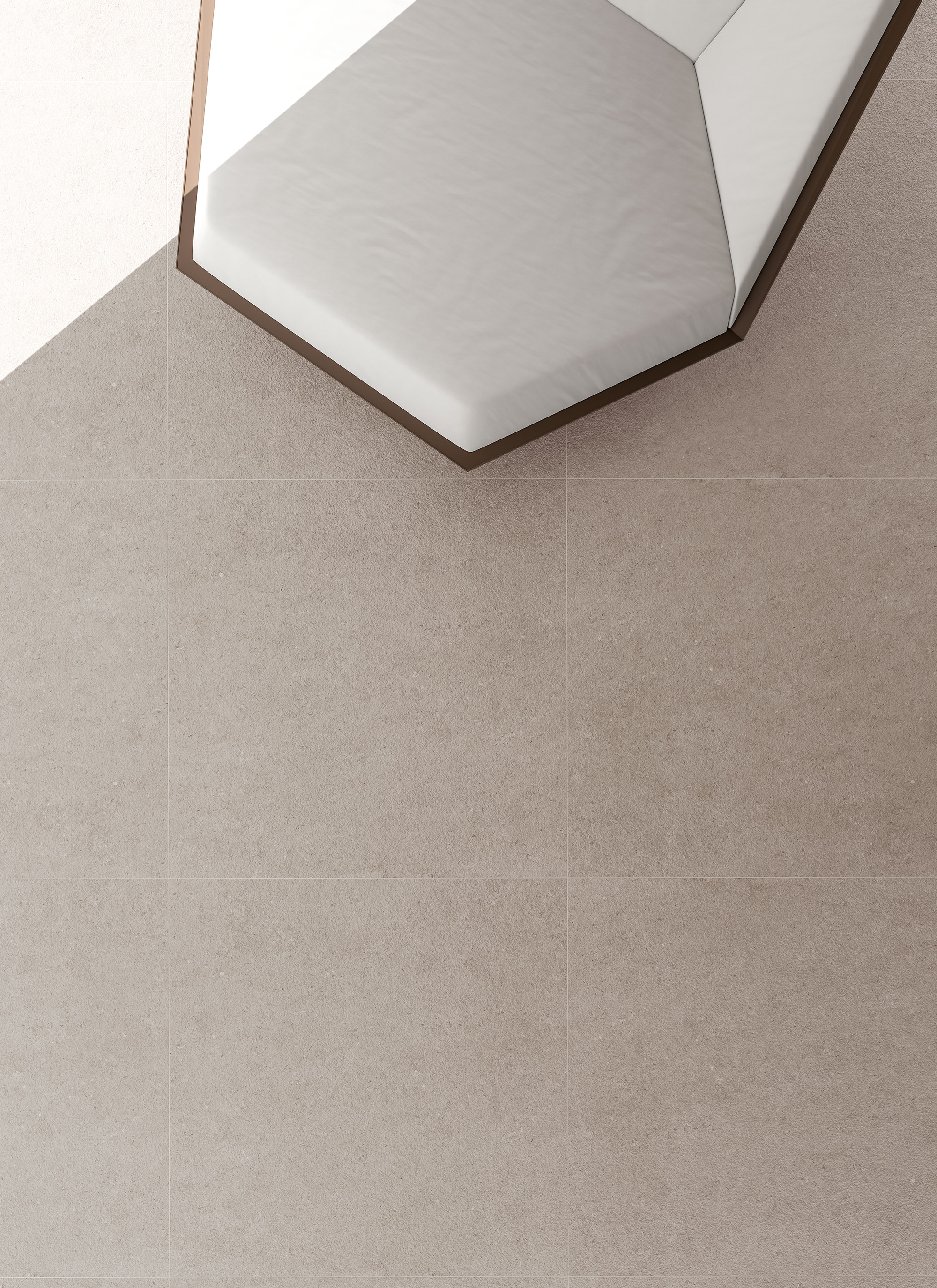

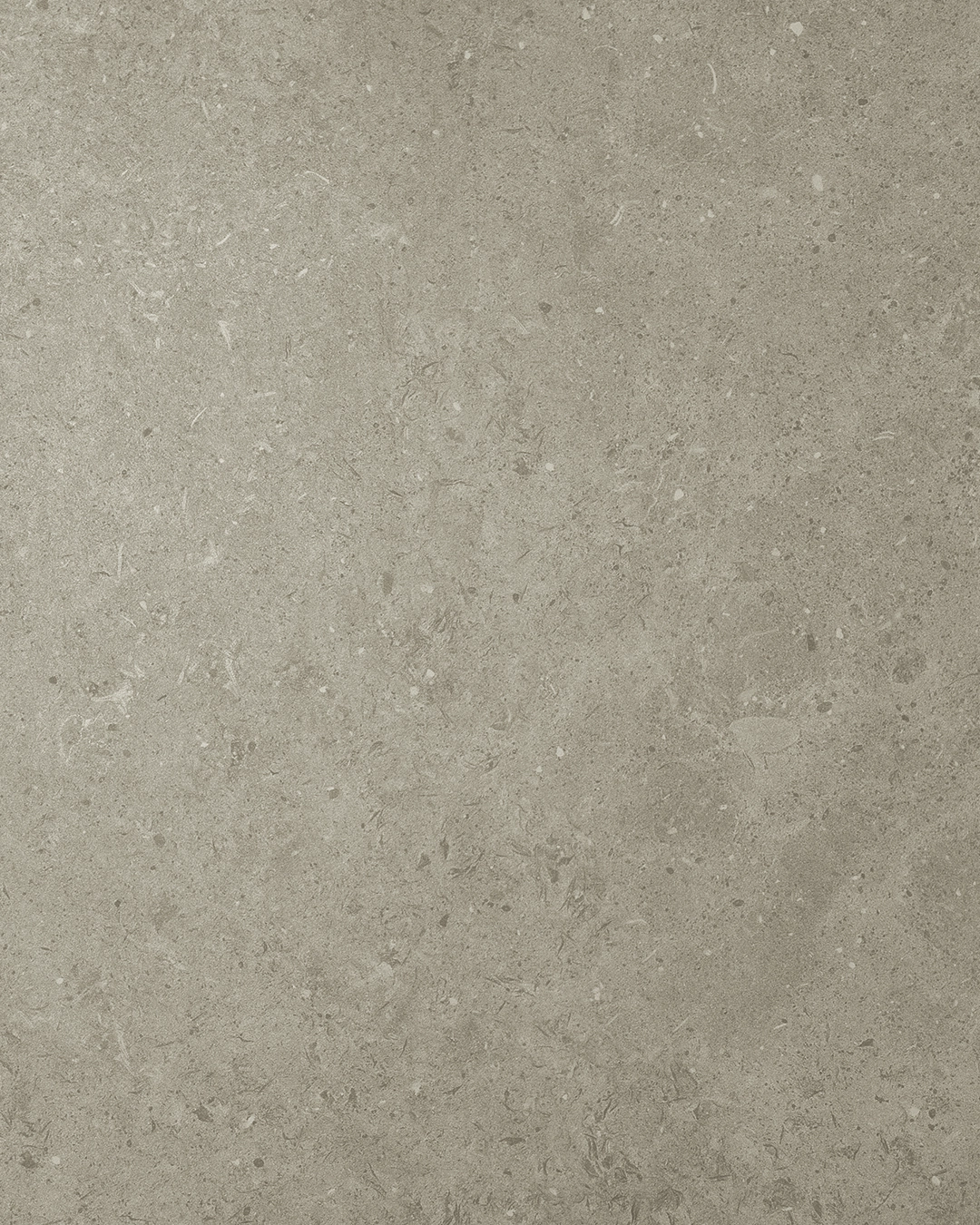

greige

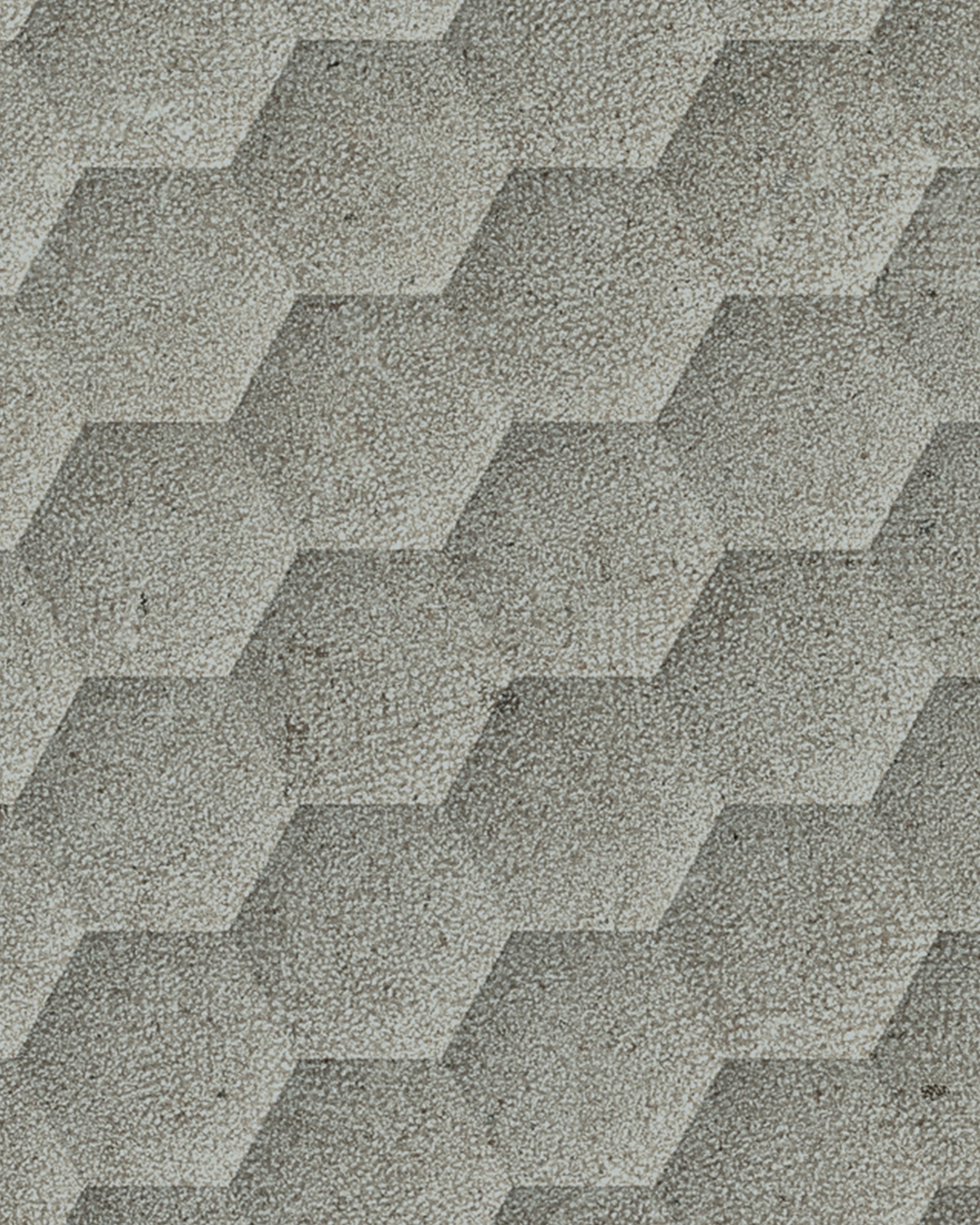

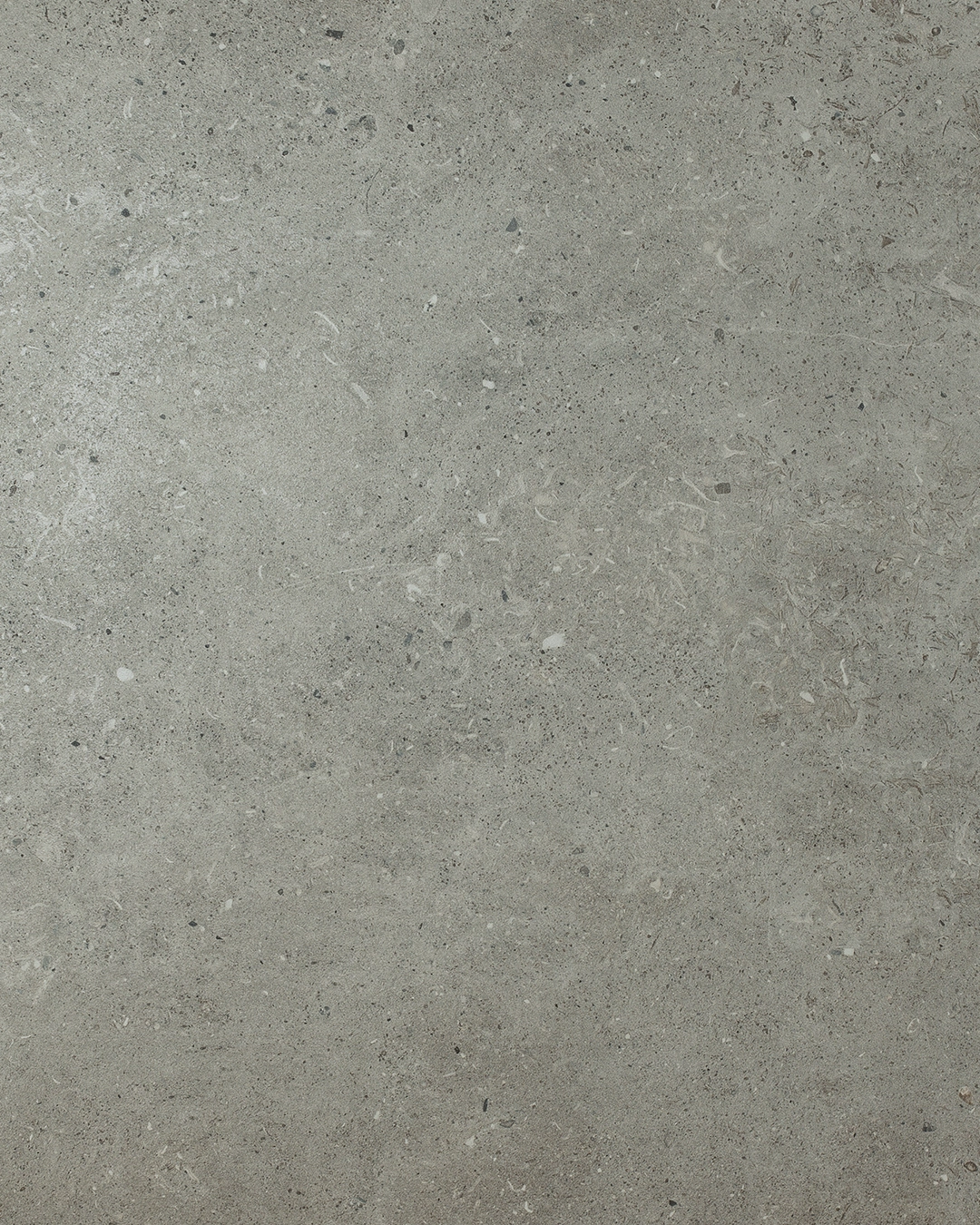

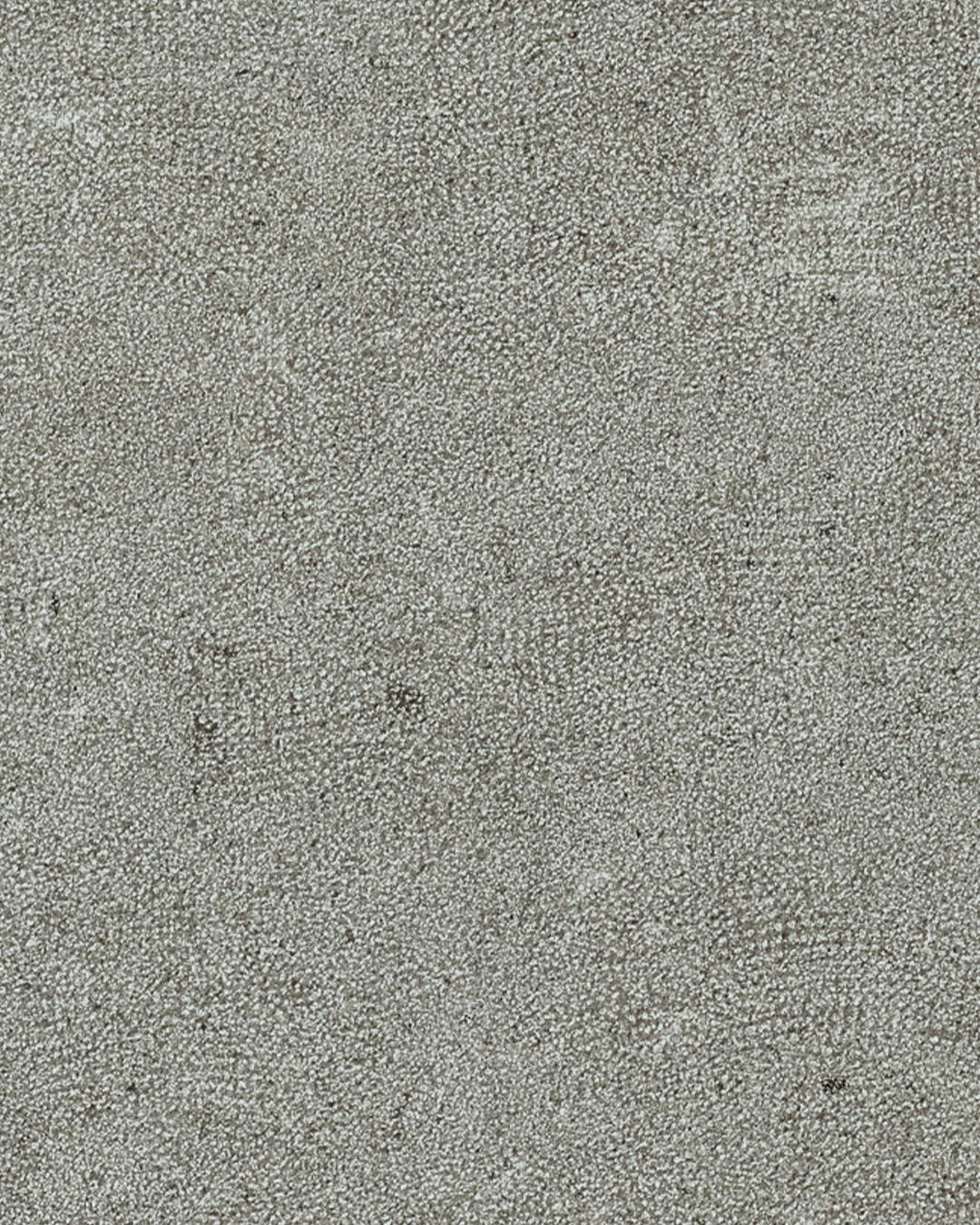

dark grey

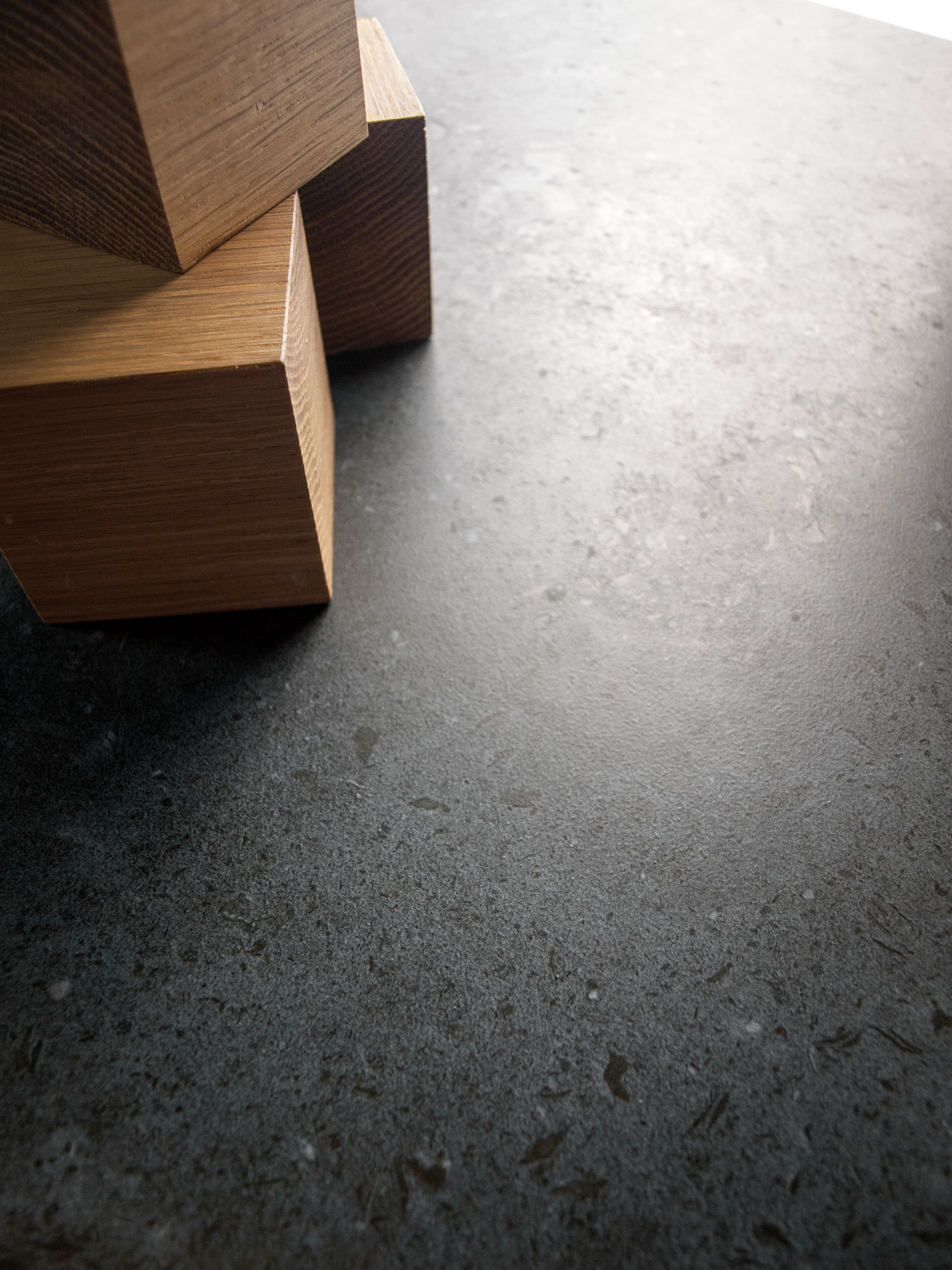

coal

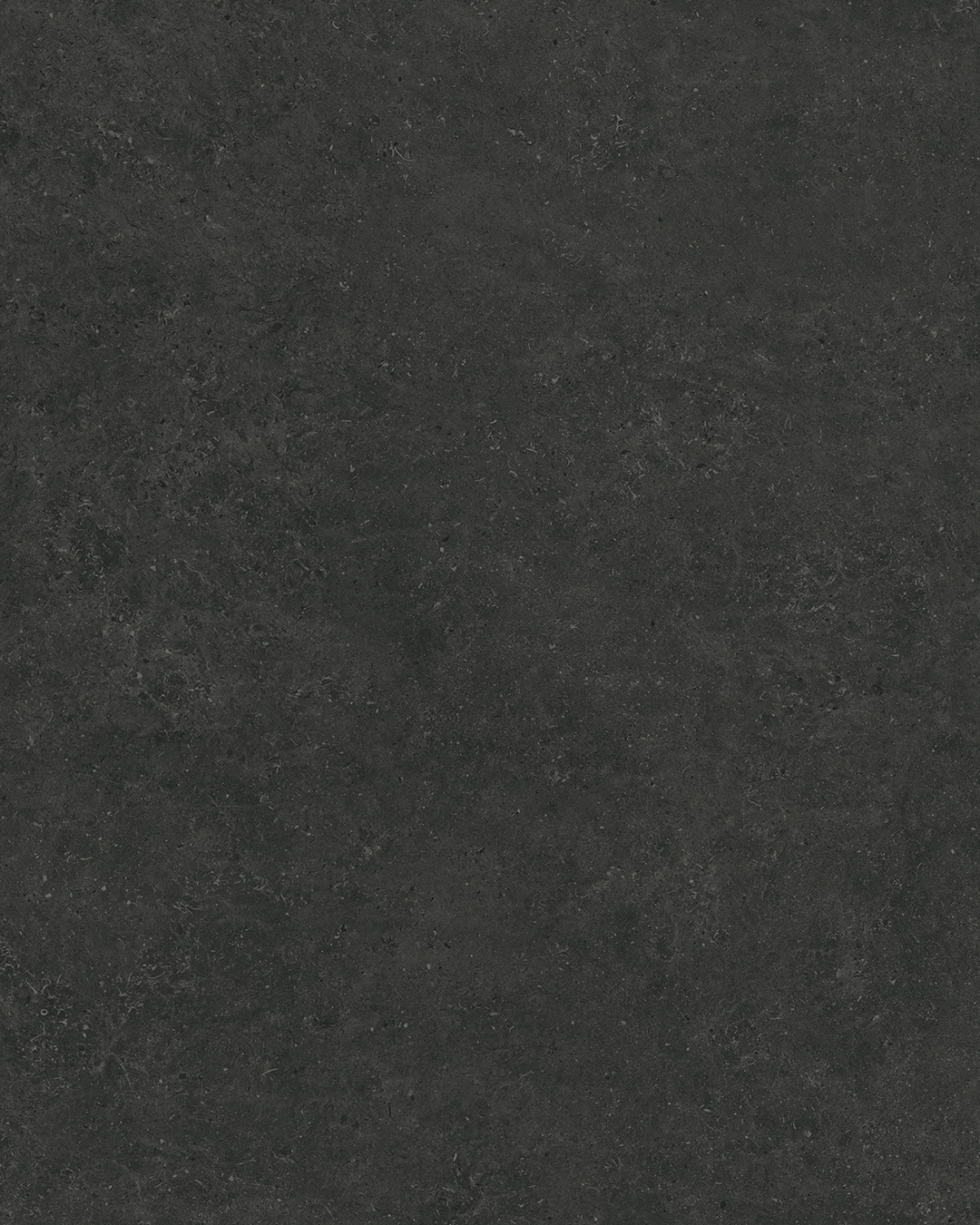

black
Nominal Size | Real Size | Natural | Bush Hammered | Anti-Slip |
---|---|---|---|---|
5x60 cm. | 4,8x59,8x0,9 cm. | |||
10x60 cm. | 9,8x59,8x0,9 cm. | |||
30x60 cm. | 29,8x59,8x0,9 cm. | |||
60x60 cm. | 59,8x59,8x0,9 cm. | |||
45x90 cm. | 44,8x89,8x0,9 cm. | |||
90x90 cm. | 89,8x89,8x0,9 cm. | |||
90x90x2 cm. | 89,8x89,8x2 cm. | |||
60x120cm. | 59,8x119,8x0,9 cm. | |||

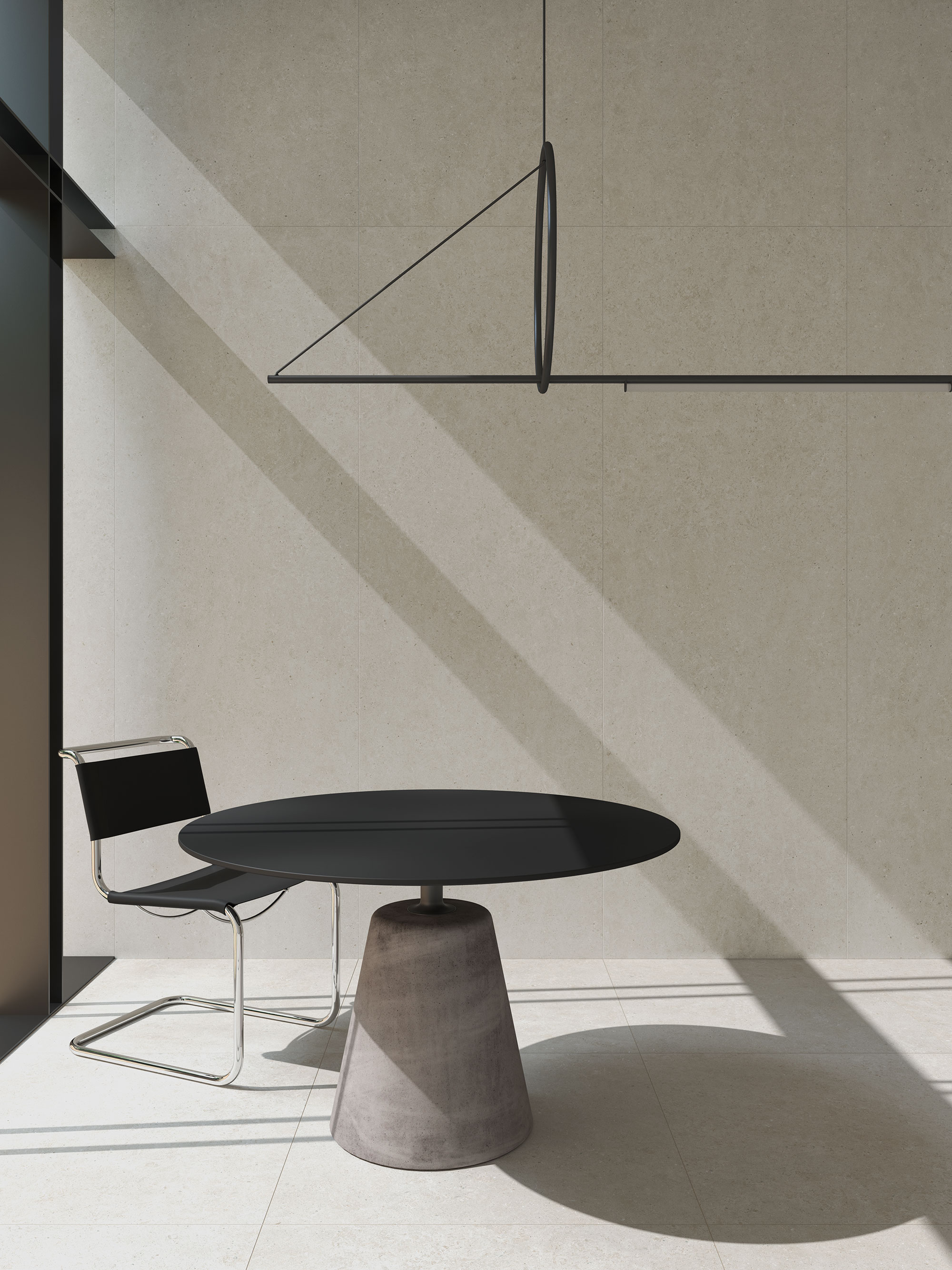

Ductile® 60x120cm. | 59,8x119,8x0,6 cm. | |||
120x120 cm. | 119,8x119,8x0,9 cm. | |||
120x120x2 cm. | 119,8x119,8x2 cm. | |||
Ductile® 90x270cm. | 89,8x269,8x0,6 cm. | |||
120x270 cm. | 119,8x269,8x0,6 cm. | |||
Mosaic 25 | 29,8x29,8x0,9 cm. | |||
Mosaic 55 | 29,8x29,8x0,9 cm. | |||
Mosaic 315 | 29,8x29,4x0,9 cm. | |||
Mureto Mosaic | 29,8x29,8x0,9 cm. |
Regulations | Features | Required Values | Value |
---|---|---|---|
EN-ISO 10545 / 3 | Water absorption | Group B1 A / E < 0,5 % | E < 0,5 % |
EN-ISO 10545 / 4 | Breaking strength | > 1300 N | > 2500 N |
EN-ISO 10545 / 4 | Bendind strength | > 35 N/mm2 | > 52 N/mm2 |
EN-ISO 10545 / 6 | Resistance to deep abrasion | < 175 mm3 | < 109 mm3 Cumple |
EN-ISO 10545 / 11 | Crazing resistance | Required | Complies with |
EN-ISO 10545 / 12 | Frost resistance | Required | Complies with |
EN-ISO 10545 / 13 | Chemical resistance: acids and alkalis | Indicado por el fabricante | Cumple |
EN-ISO 10545 / 14 | Stain resistance | Min. Clase 3 | Clase 5 |
EN-ISO 10545 / 2 | Surface quality | Min. 95% de los azulejos sin defecto | Guaranteed |
UNE ENV 12633 | AntideslizamienSlip Resistance (Pendulum Test) | Min. Clase 1 | Clase 1 Natural Clase 2 Bush Hammered Clase 3 Antislip |
DIN 51130 | Critical Angle of Sliding (Inclined Platform) | Min. R9 | R9 Natural R11 Antislip |
DIN 51097 | Critical Angle of Sliding (Wet Areas of Barefoot Walking) | Min. Clase A | Clase A Natural Clase C Antislip |
UNE EN 13501-1:2002 | Fire Reaction Test | A1 / A1FL | |
VOC | Do not release volatile elements |
*Bera Beren White, Biscuit,Greige,Light Grey y Dark Grey available in thickness 20mm
