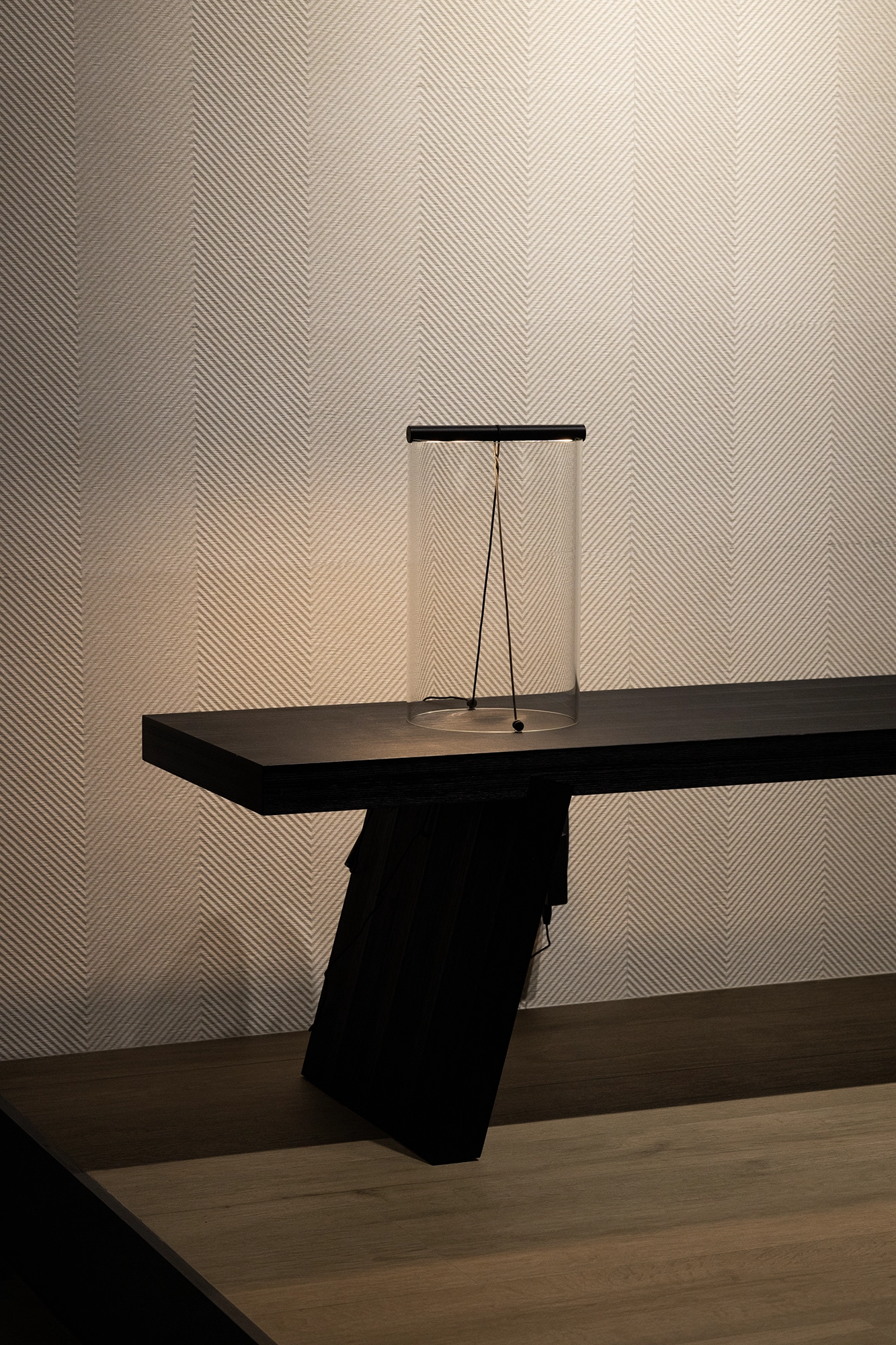

As a kind of visual interplay, Ground is a line that uses different material references to present a piece that is daring in its design but versatile in its use both indoors and outdoors, making it a perfect complement for the Contemporary Mixtures Surfaces set of lines.

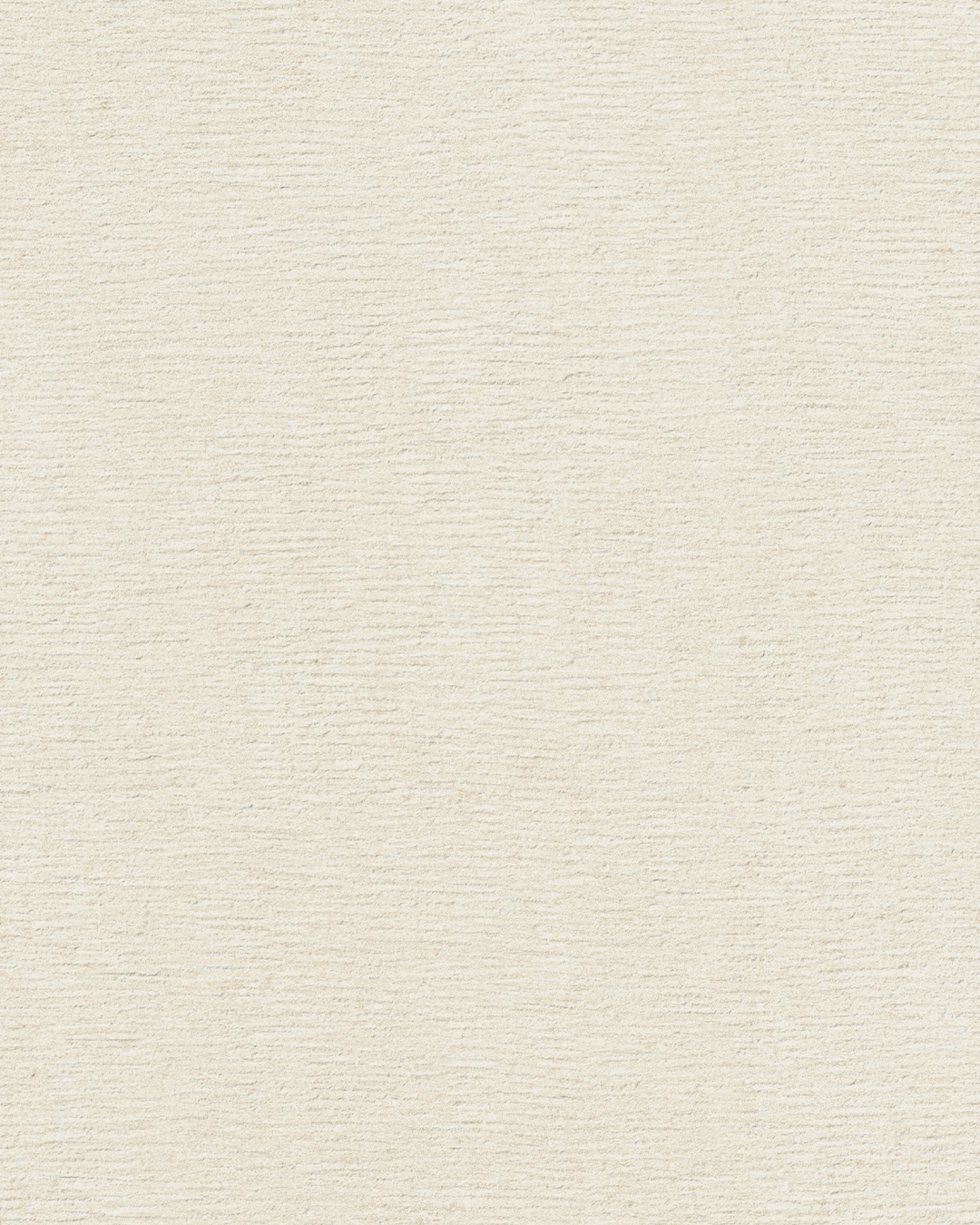

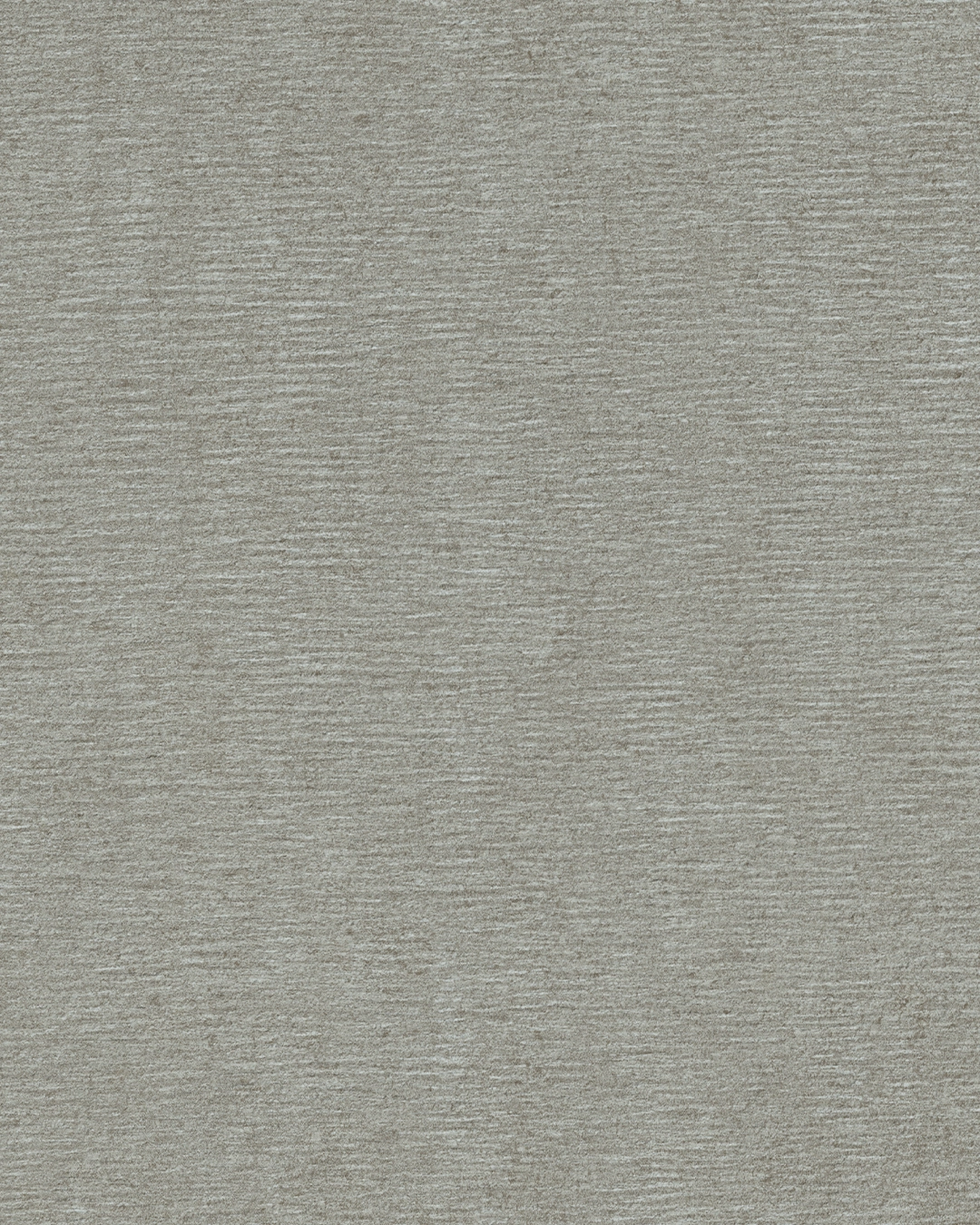

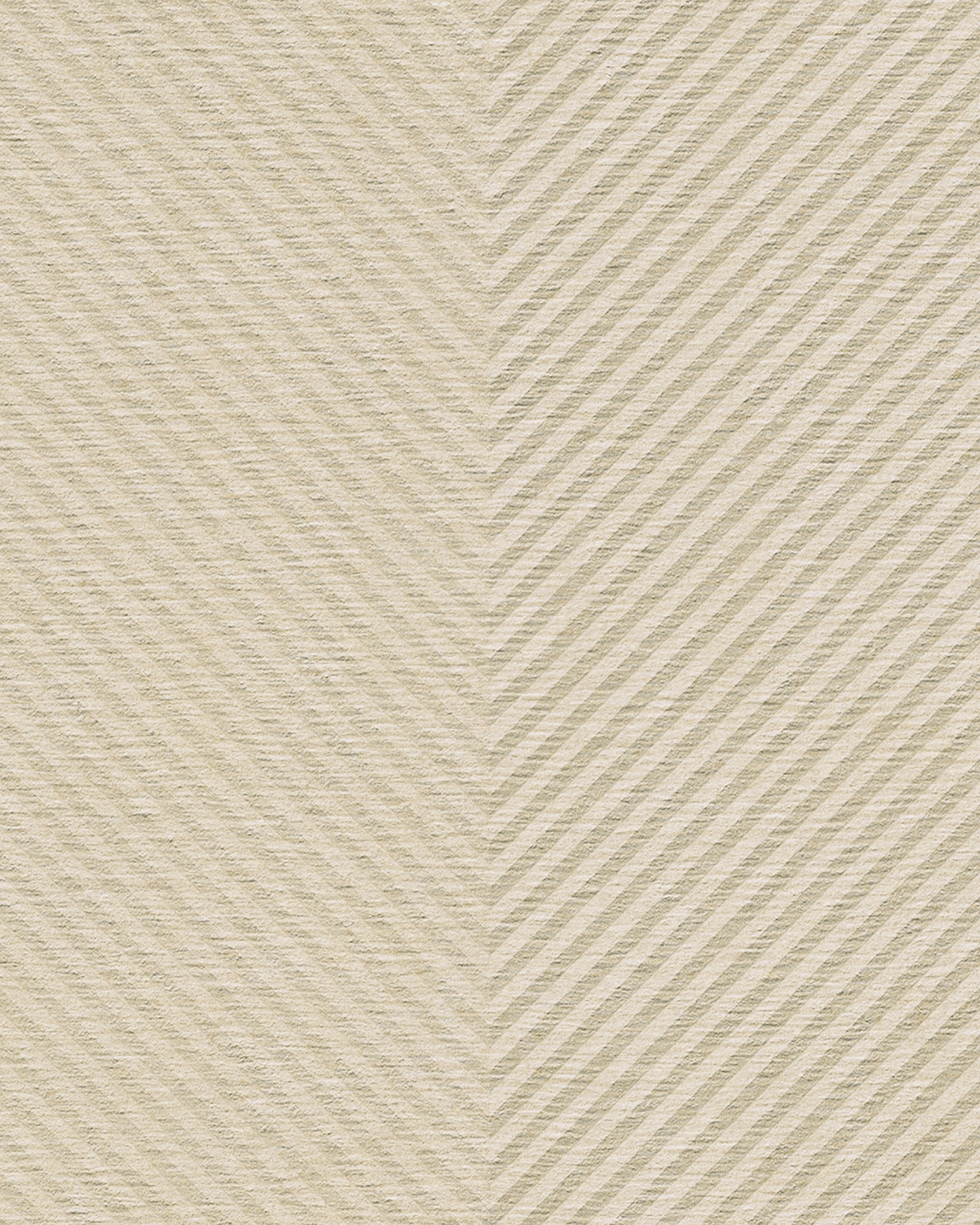

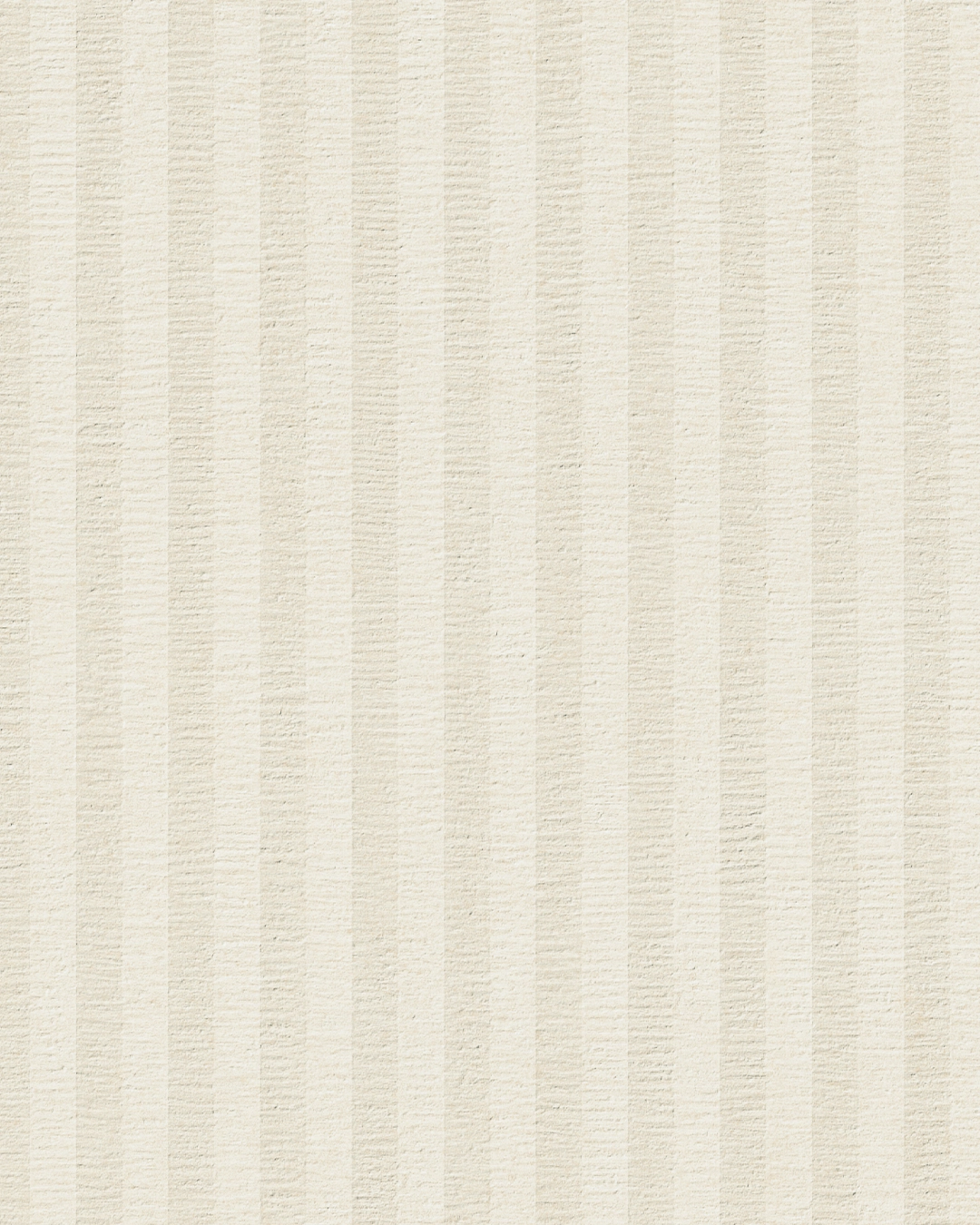

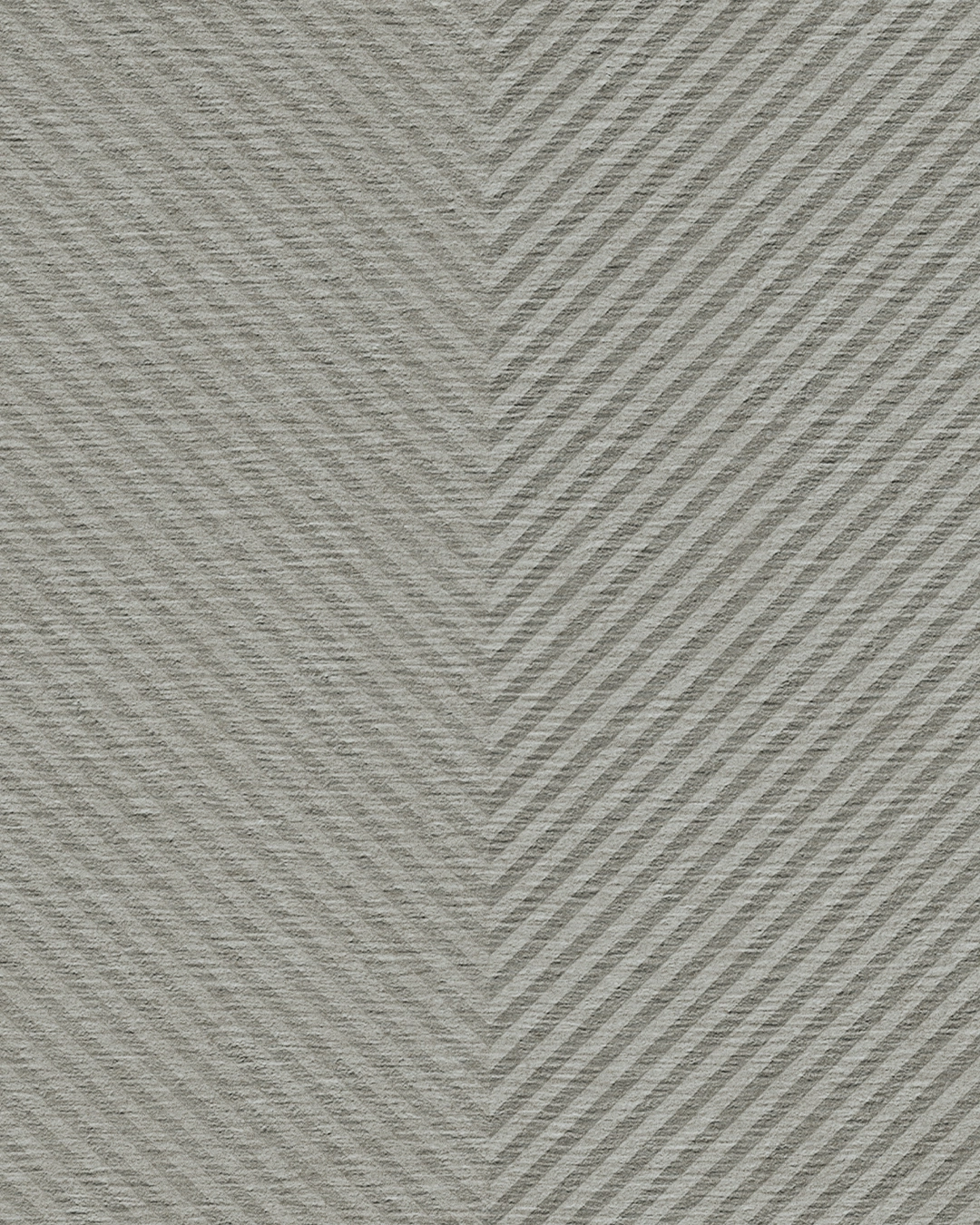

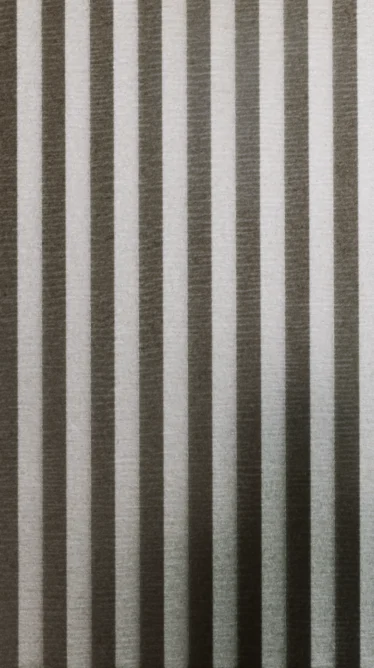

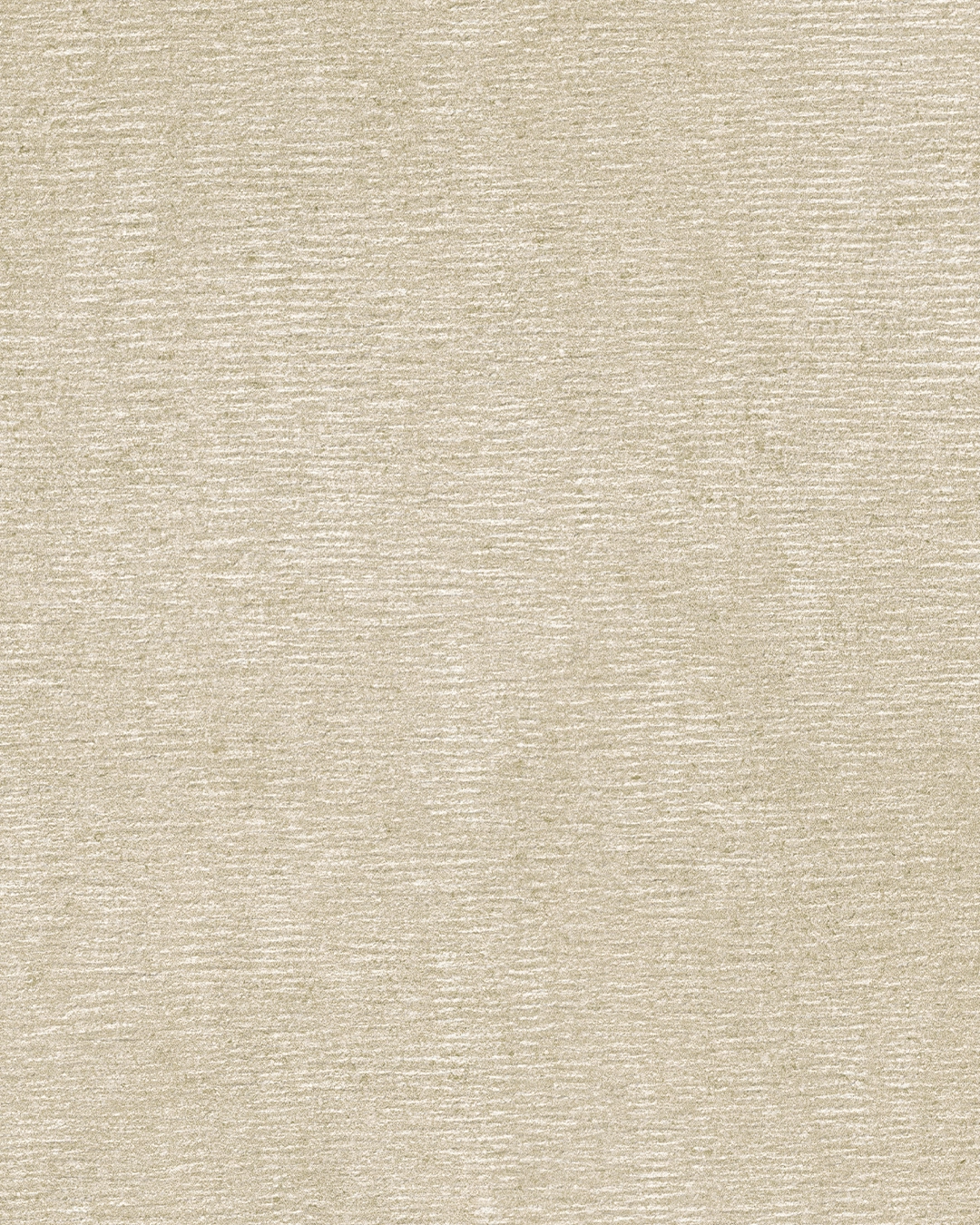

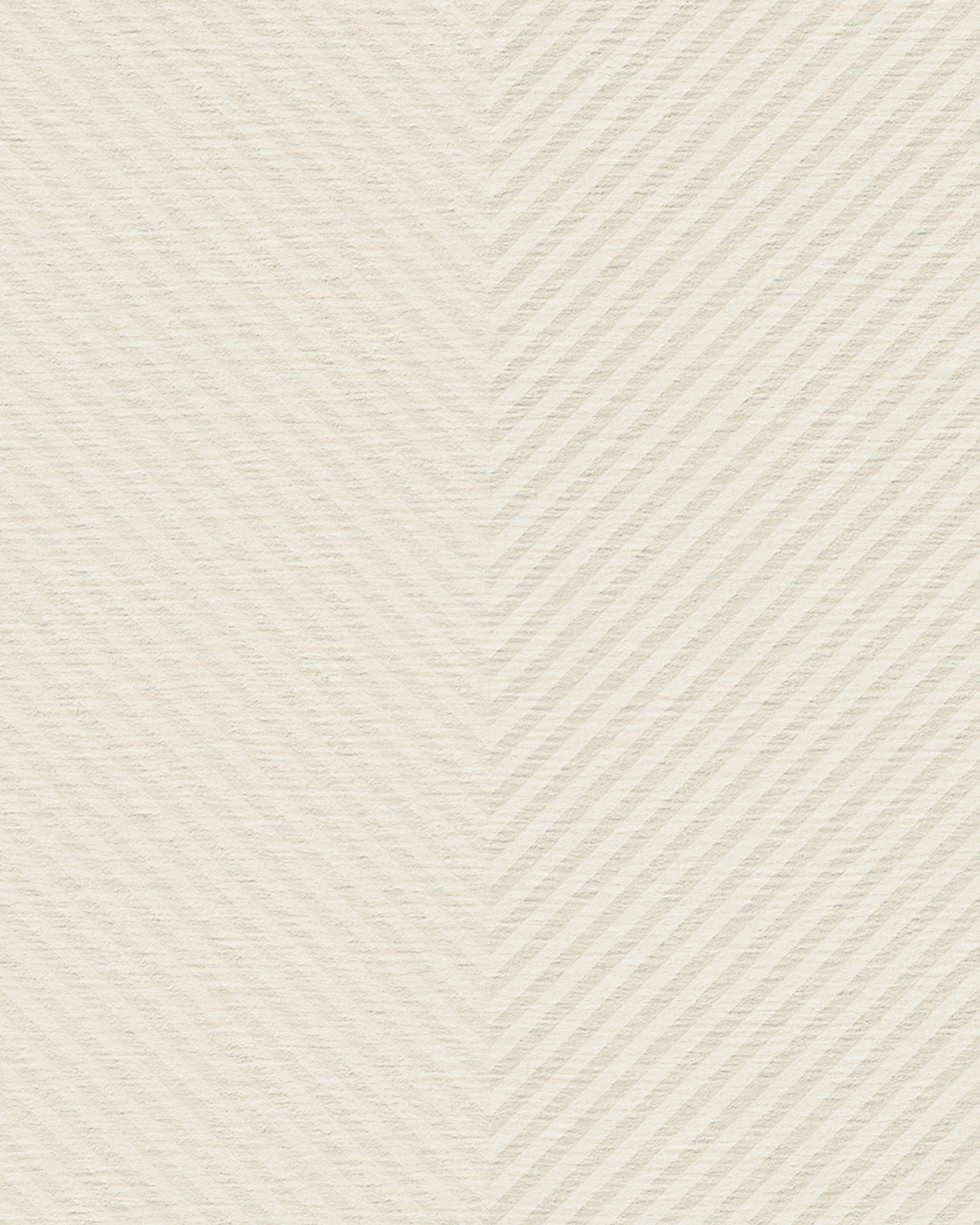

Its pieces are filled with nuances through different texture design proposals, from the subtleties of the Loire Valley limestones to the texture of natural cement and the gentle gradations that provide references to terracotta. The result is a serie of captivating pieces, with an exquisite and completely unique finish.

Nominal Size Real Size Natural
10x60 cm 4"x24" 9.8x59.8x0.9 cm
30x60 cm 12"x24" 29.8x59.8x0.9 cm
60x60 cm 24"x24" 59.8x59.8x0.9 cm
45x90 cm 18"x36" 44.8x89.8x0.9 cm
90x90 cm 36"x36" 89.8x89.8x0.9cm
Hexagon 90x90 cm 36"x36" 89.8x86 cm
Diamond 90x90 cm 36"x36" 89.8x79 cm
Trapezium 90x90 cm 36"x36" 89.8x79 cm
Mosaic 25 29.8x29.8x0.9 cm
Hexa Mosaic 26.5x27.6x0.9 cm
Moved Mosaic 29.8x29.8x0.9 cm
Spike Mosaic 22.6x43x0.9 cm
Regulations Features Required Values Value
EN-ISO 10545 / 3 Water absorption Grupo B1 A / E < 0,5 % E < 0,5 %
EN-ISO 10545 / 4 Breaking strength > 1300 N > 1300 N
EN-ISO 10545 / 4 Bendind strength > 35 N/mm2 > 35 N/mm2
EN-ISO 10545 / 6 Resistance to deep abrasion < 175 mm3 < 175 mm3
Cumple
EN-ISO 10545 / 11 Crazing resistance Required Complies with
EN-ISO 10545 / 12 Frost resistance Required Complies with
EN-ISO 10545 / 13 Chemical resistance: acids and alkalis IIndicated by the manufacturer GLA/GHA
Complies with
EN-ISO 10545 / 13 Chemical resistance: domestic cleaning products and swimming pool salts Min. GB GA
EN-ISO 10545 / 14 Stain resistance Min. Clase 3 Clase 5
EN-ISO 10545 / 2 Surface quality Min. 95% of tiles without defect Guaranteed
UNE ENV 12633 Slip Resistance (Pendulum Test) Min. Clase 1 Clase 1 Natural
DIN 51130 Critical Angle of Sliding (Inclined Platform) Min. R9 R10 Natural
DIN 51097 Critical Angle of Sliding (Wet Areas of Barefoot Walking) Min. Clase A Clase A Natural
UNE EN 13501-1:2002 Fire Reaction Test A1 / A1FL
VOC Do not release volatile elements
